Disassembly And Assembly: Overhaul: Component: Notes
WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

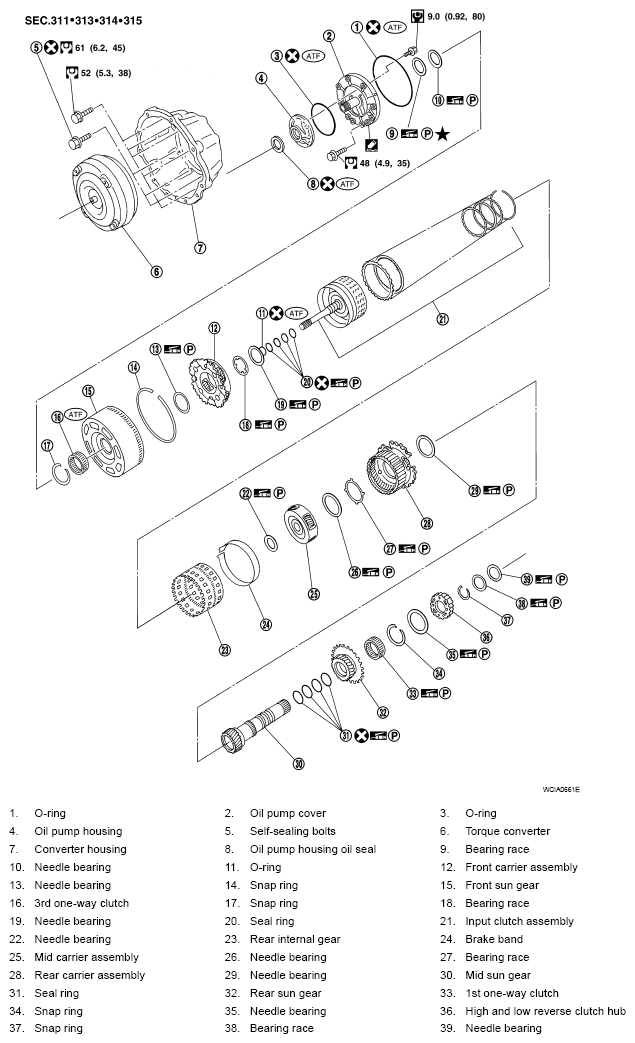

Fig 1: Transmission Assembly Component And Torque Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

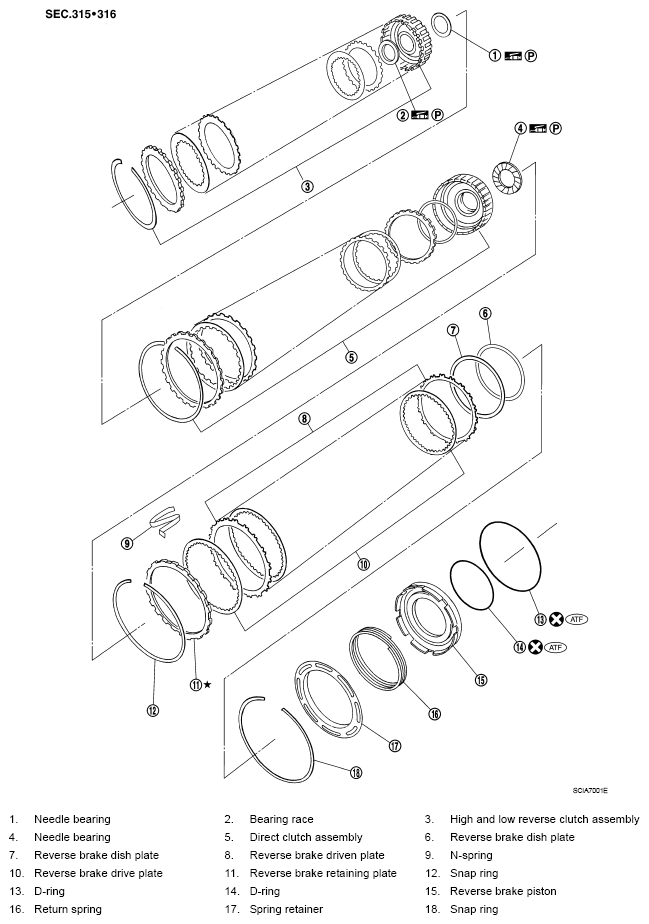

Fig 2: Transmission Assembly Component And Torque Specifications (2 Of 2)
