Cross-Sectional View (2WD models)

WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

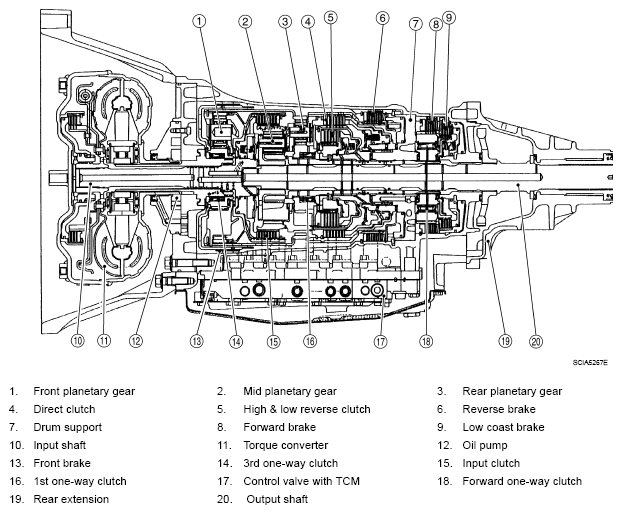

Fig 1: Cross-Sectional View - A/T Control System (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.
