Exploded View

WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

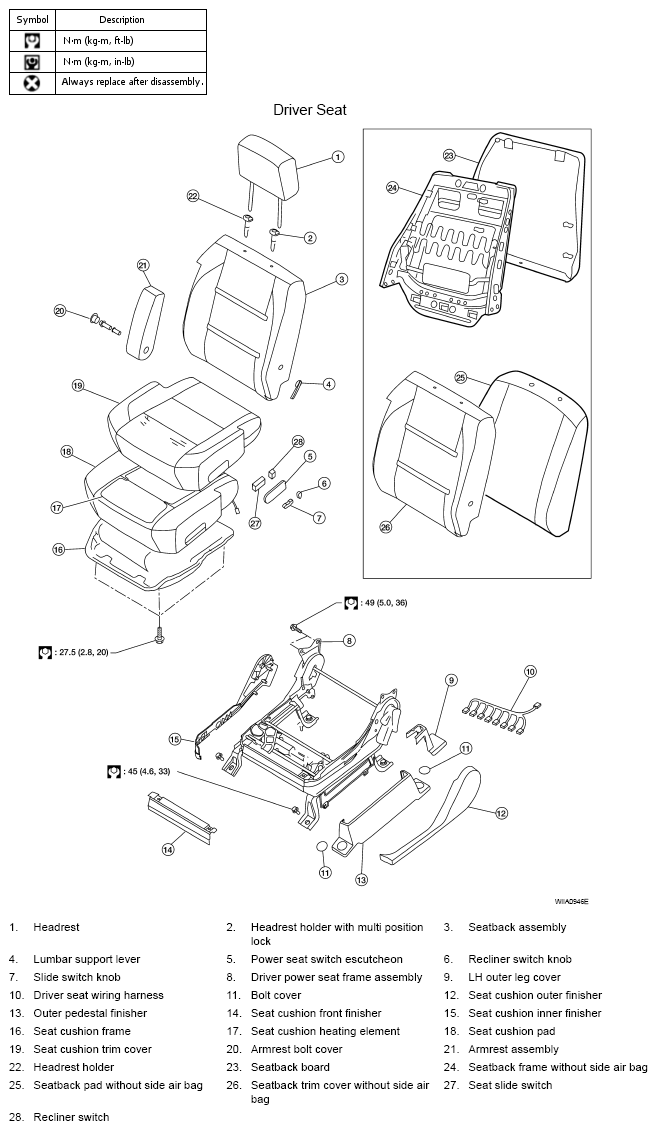

Fig 1: Exploded View Of Driver Seat With Torque Specifications
G05717196Courtesy of NISSAN MOTOR CO., U.S.A.

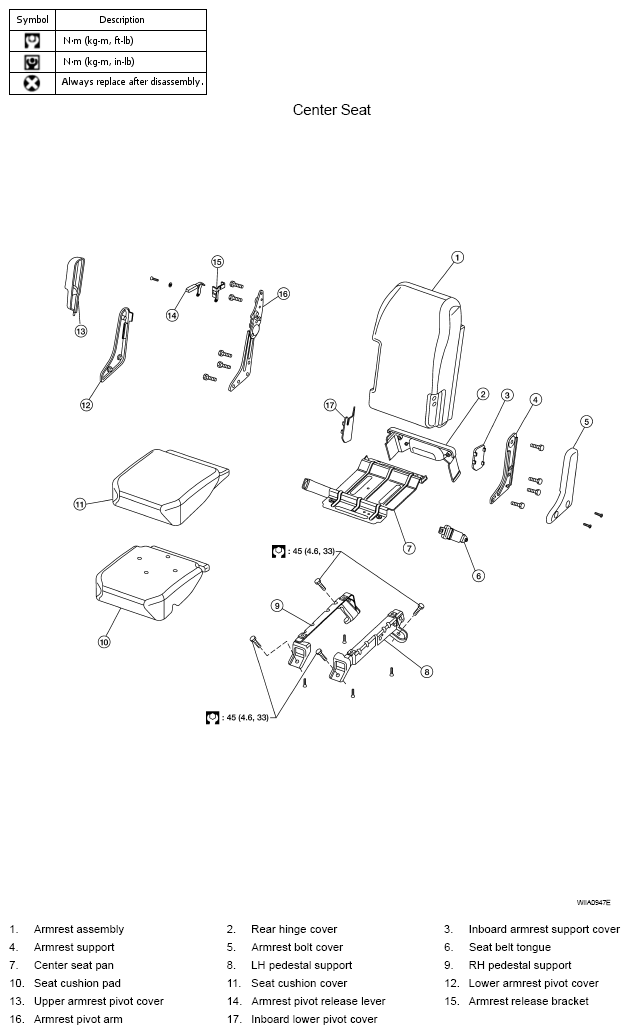

Fig 2: Exploded View Of Center Seat With Torque Specifications
G05717197Courtesy of NISSAN MOTOR CO., U.S.A.

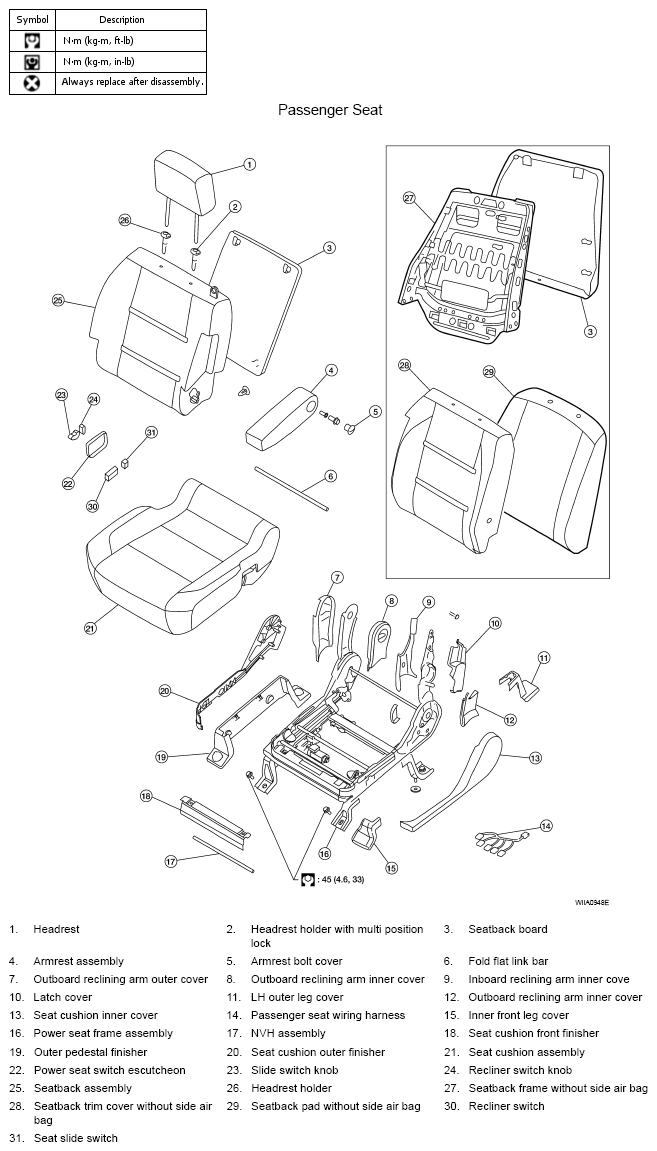

Fig 3: Exploded View Of Passenger Seat With Torque Specification
G05717198Courtesy of NISSAN MOTOR CO., U.S.A.
