Exploded View

WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

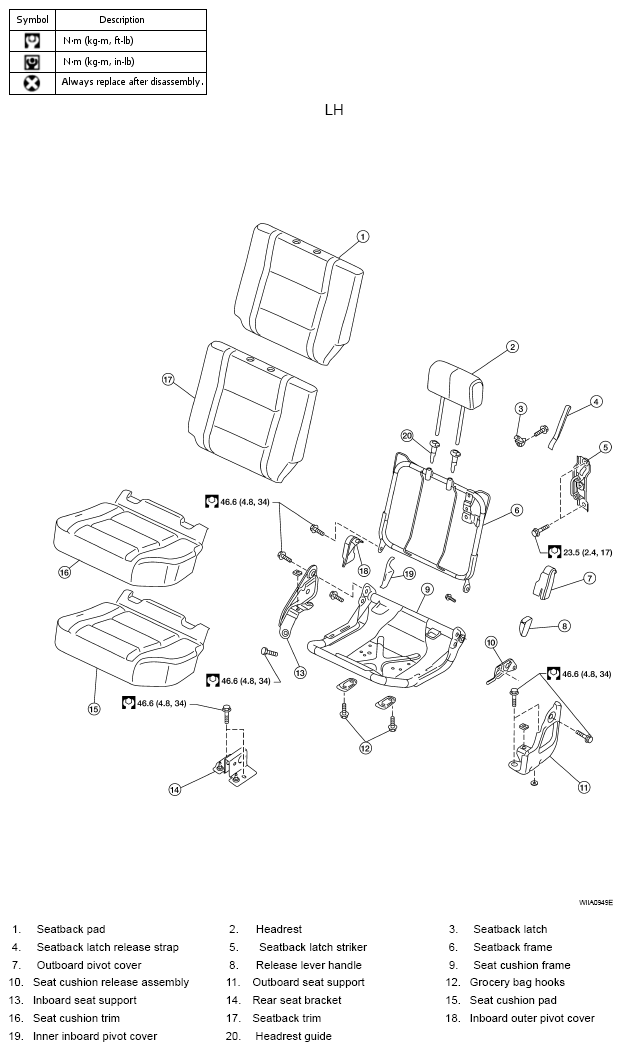

Fig 1: Exploded View Of Rear Seat With Torque Specifications (LH)
G05717208Courtesy of NISSAN MOTOR CO., U.S.A.

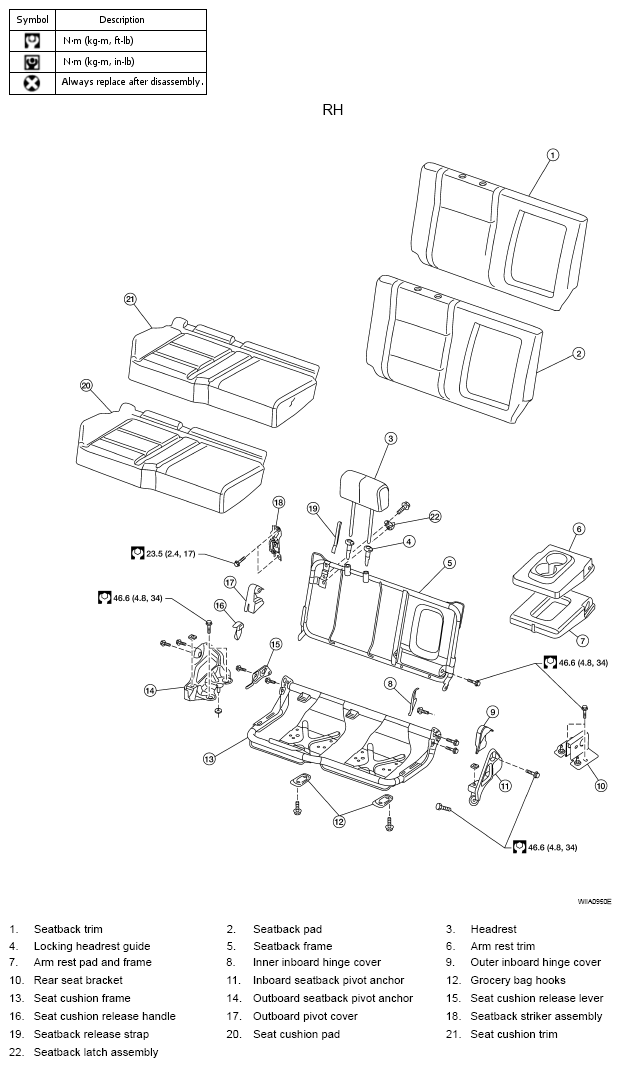

Fig 2: Exploded View Of Rear Seat With Torque Specifications (RH)
G05717209Courtesy of NISSAN MOTOR CO., U.S.A.
