Engine Control Component Parts/Control Systems Application
WARNING: This page is about a different car, the 2008 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

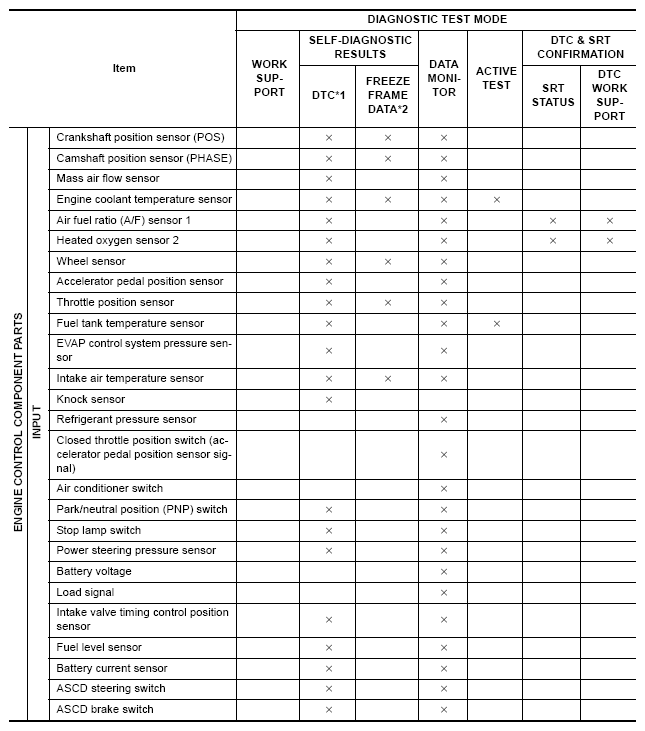

Fig 1: Diagnostic Test Mode Reference Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

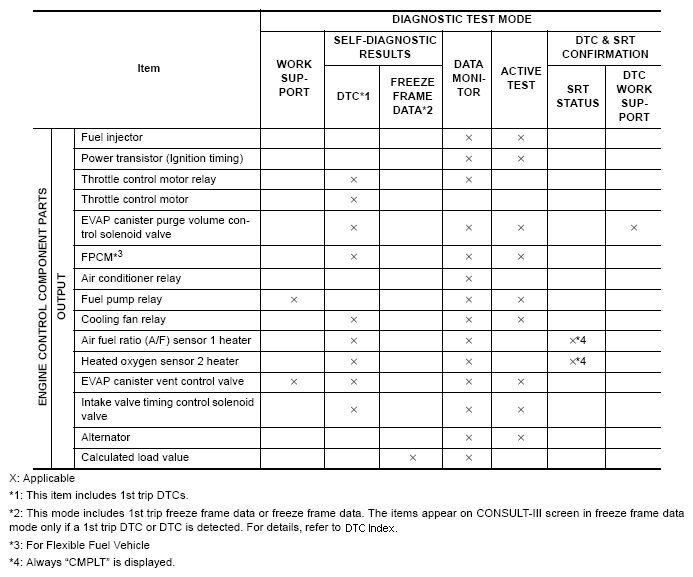

Fig 2: Diagnostic Test Mode Reference Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "CONSULT-III Software Operation Manual" for more information.
