Case And Extension

WARNING: This page is about a different variant/trim than selected.

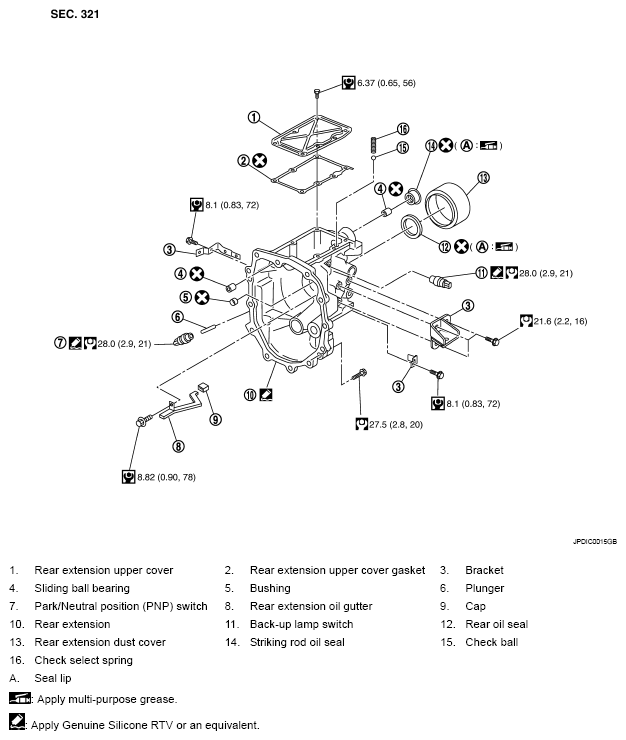

Fig 1: Exploded View Of Transmission Assembly With Torque Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

Δ : For the bolt mounting positions, refer to "ASSEMBLY ".

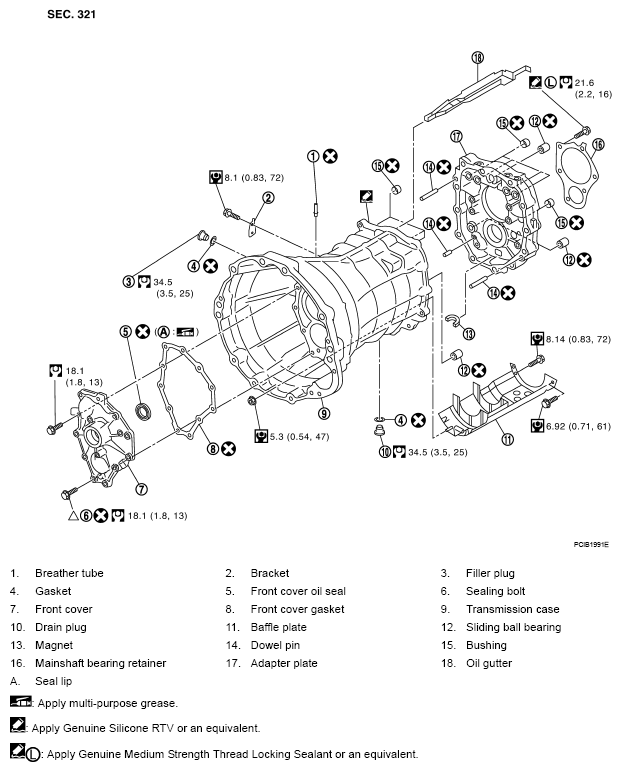

Fig 2: Exploded View Of Transmission Assembly With Torque Specification

Courtesy of NISSAN MOTOR CO., U.S.A.
