Section 1 (Manual Transmission)
›
On-Vehicle Repair
›
Shift Control
›
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

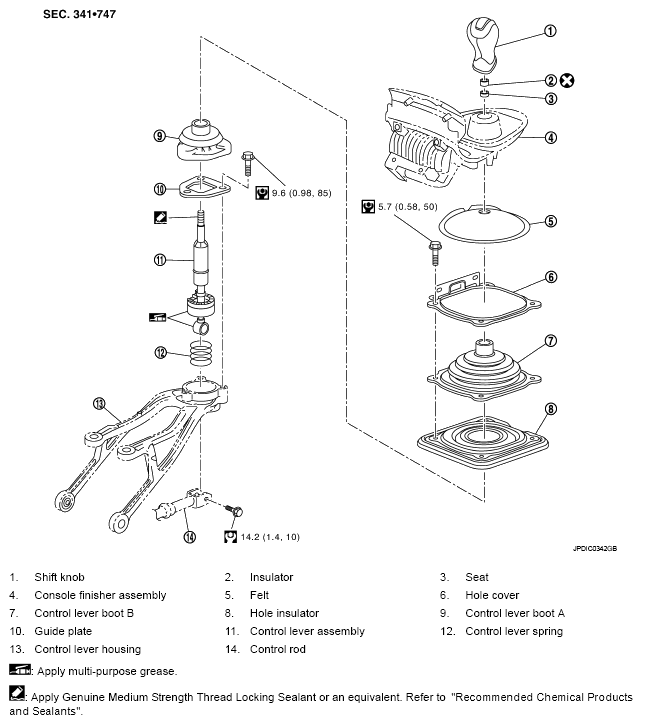

Fig 1: Exploded View Of Shift Control Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
