Section 2 (Clutch)
›
On-Vehicle Repair
›
Clutch Piping
›
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

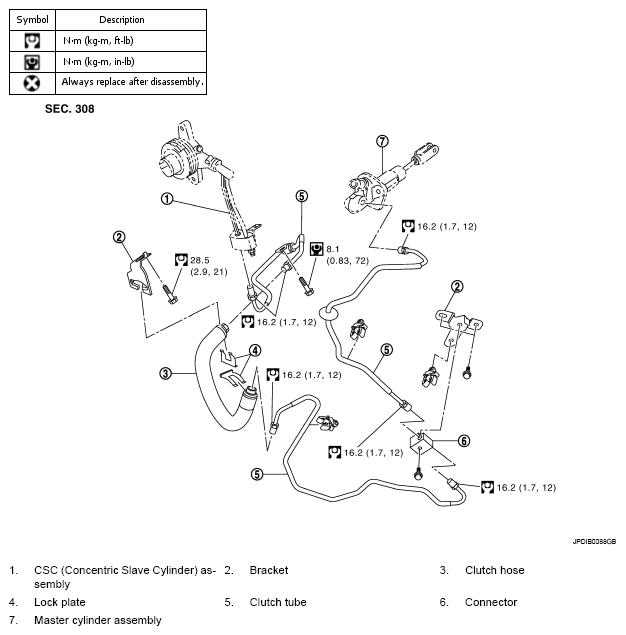

Fig 1: Exploded View Of Clutch Piping With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
