Steering Control System (With 4WAS)
›
Function Diagnosis
›
4WAS System
›
System Diagram
›
Cross-Sectional View
Cross-Sectional View

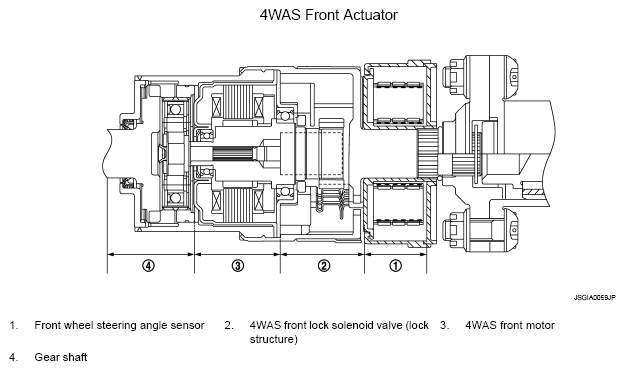

Fig 1: Cross-Sectional View Of 4WAS Front Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.

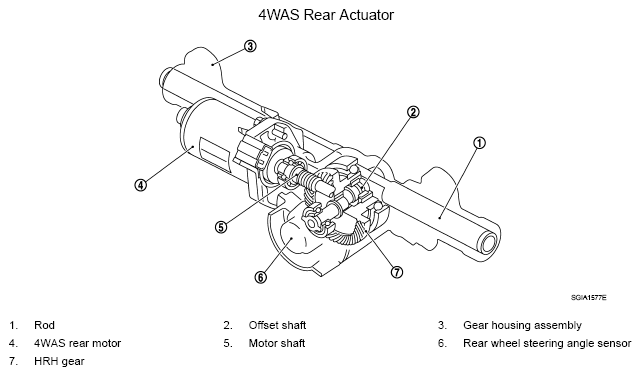

Fig 2: Cross-Sectional View Of 4WAS Rear Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
