Exploded View
Exploded View

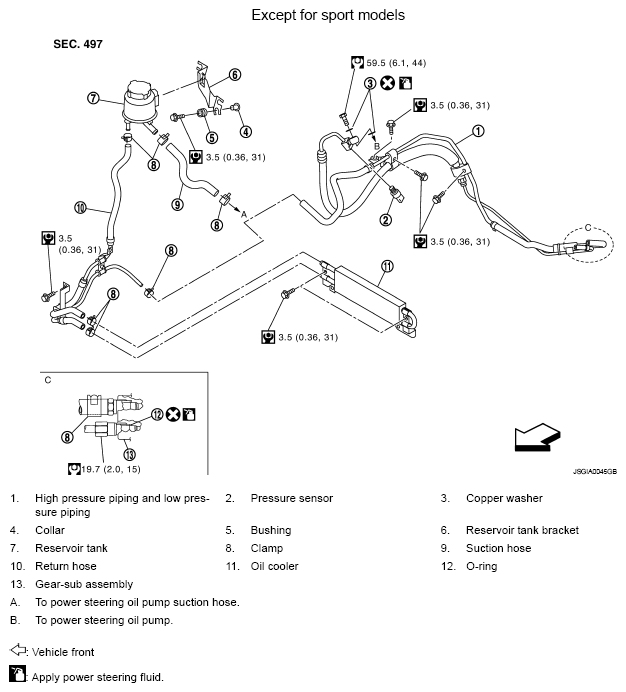

Fig 1: Exploded View Of Hydraulic Line With Bolt Torque Specifications (Except For Sport Models)
Courtesy of NISSAN MOTOR CO., U.S.A.

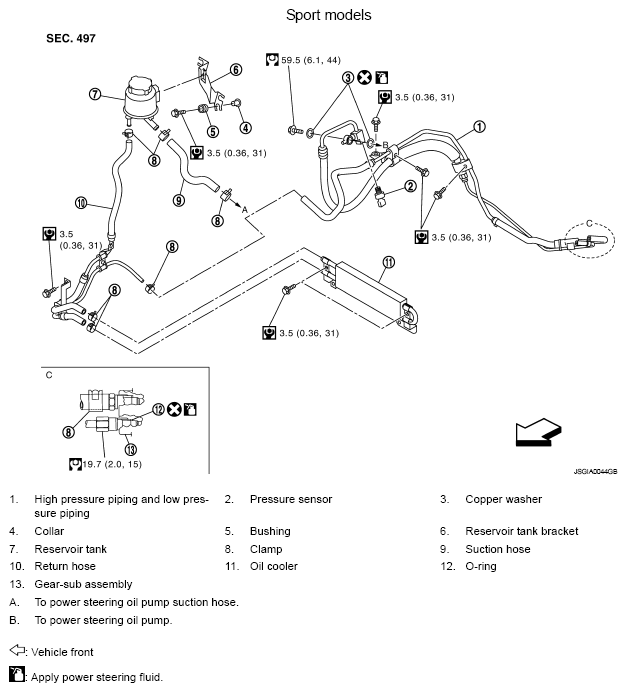

Fig 2: Exploded View Of Hydraulic Line With Bolt Torque Specifications (Sport Models)
Courtesy of NISSAN MOTOR CO., U.S.A.
