Lower Shaft
›
With 4WAS
›
WITH 4WAS : Exploded View
›
Removal And Installation
Removal And Installation

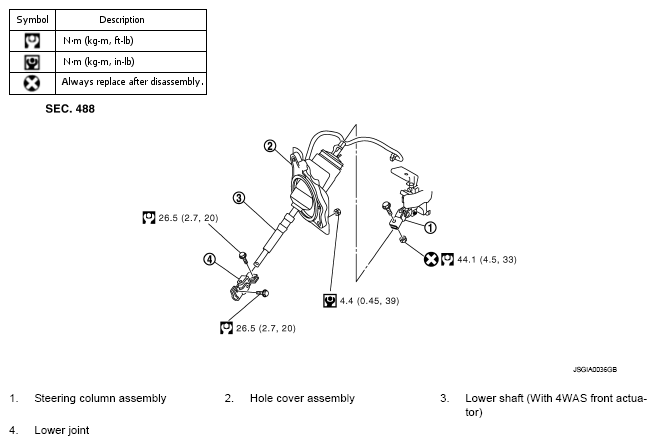

Fig 1: Removing/Installing Steering Column Assembly With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
