Disassembly And Assembly
Disassembly And Assembly

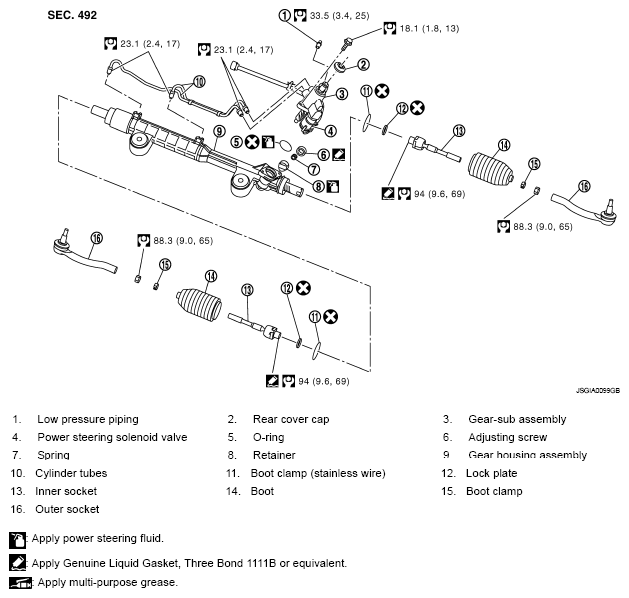

Fig 1: Disassembly/Assembly Of Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
