Infiniti
›
2008
›
G37 Base
›
Repair and Diagnosis
›
Suspension
›
Front Suspension
›
On-Vehicle Repair
›
Transverse Link
›
Exploded View
Exploded View

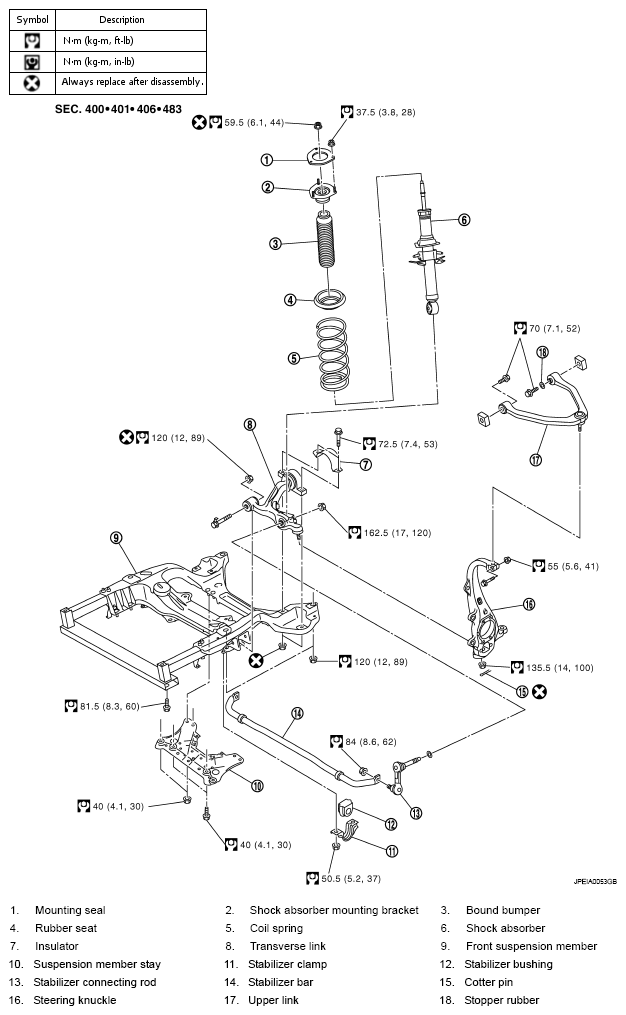

Fig 1: Exploded View Of Transverse Link With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
