Rear Lower Link & Coil Spring
›
Exploded View
Exploded View

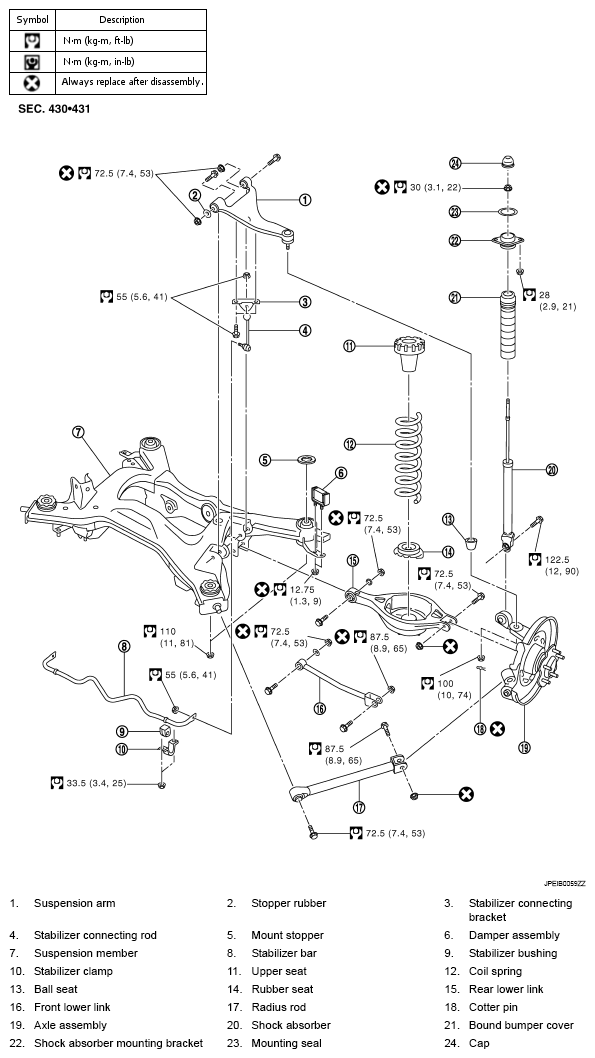

Fig 1: Exploded View Of Rear Lower Link And Coil Spring With Torque Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
