FixVault
Home
›
Infiniti
›
2008
›
G37 Base
›
Repair and Diagnosis
›
Suspension
›
Wheel Alignment
›
Rear Suspension
›
On-Vehicle Repair
›
Rear Shock Absorber
›
Exploded View
Exploded View

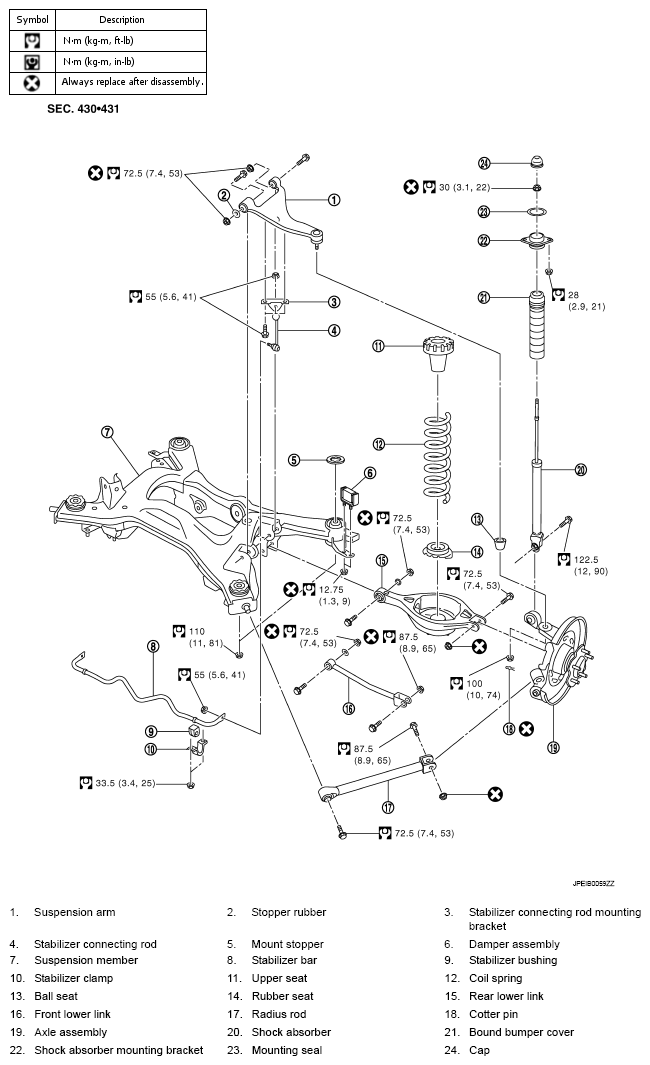

Fig 1: Exploded View Of Rear Shock Absorber With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
