Heated Seat: Schematic

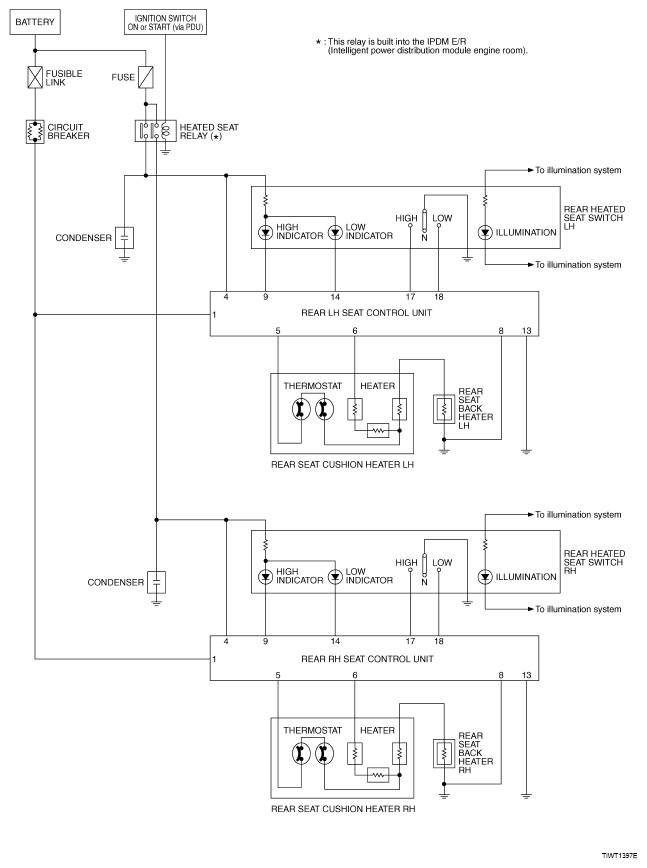

Fig 1: Heated Seat - Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
