Evaporative Emission Line Drawing

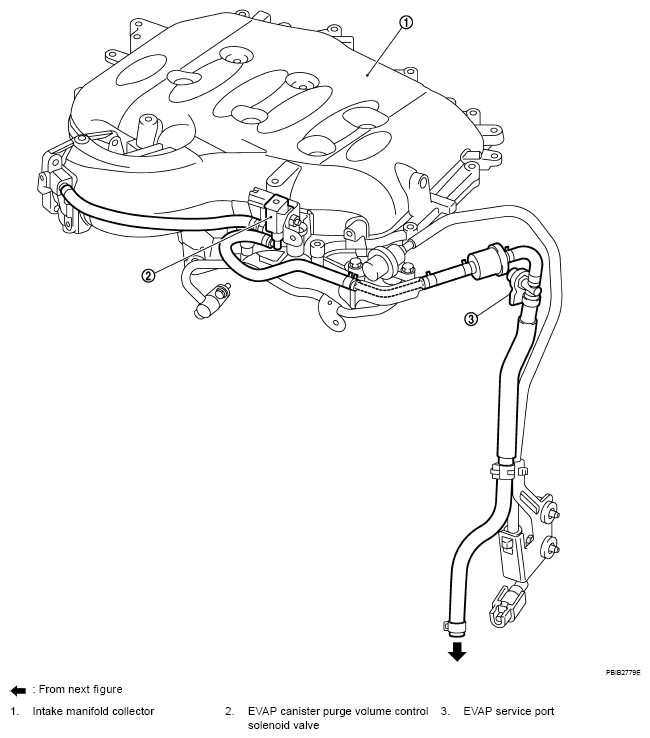

Fig 1: Identifying Intake Manifold Collector, EVAP Canister Purge Volume Control Solenoid Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

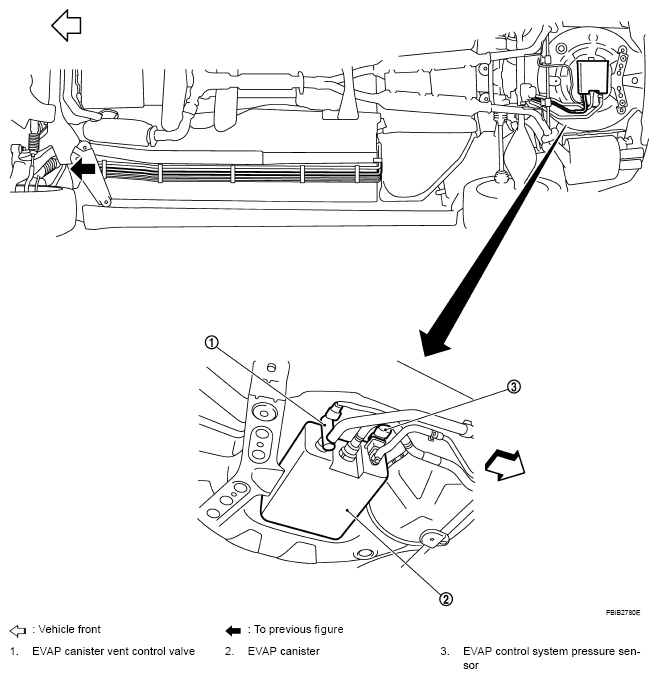

Fig 2: Identifying EVAP Control System Pressure Sensor And EVAP Canister Vent Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
