Warning Chime: Schematic

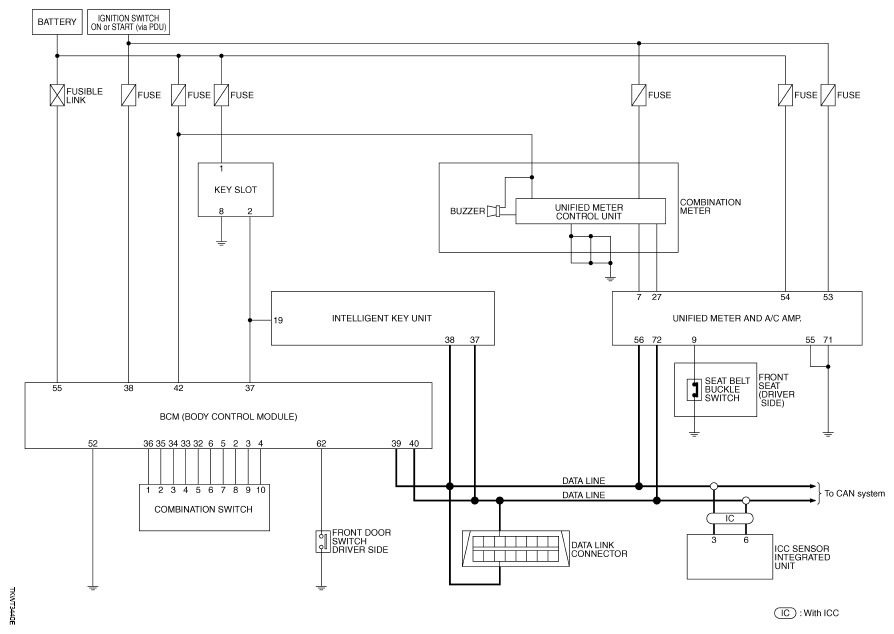

Fig 1: Warning Chime Schematic Diagram
G05214301Courtesy of NISSAN MOTOR CO., U.S.A.
