Snow Mode Switch: Wiring Diagram

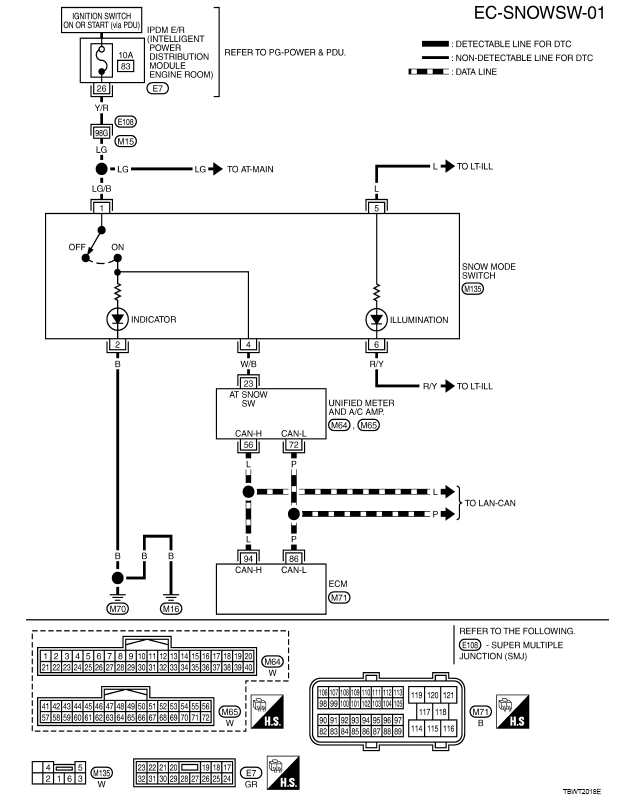

Fig 1: EC-SNOWSW-01 Wiring Diagram
G00479676Courtesy of NISSAN MOTOR CO., U.S.A.
