Engine Control System (VK45DE) - DTCS P0460 Through P1421
›
DTC P1217 Engine Over Temperature
›
Wiring Diagram
DTC P1217 Engine Over Temperature: Wiring Diagram

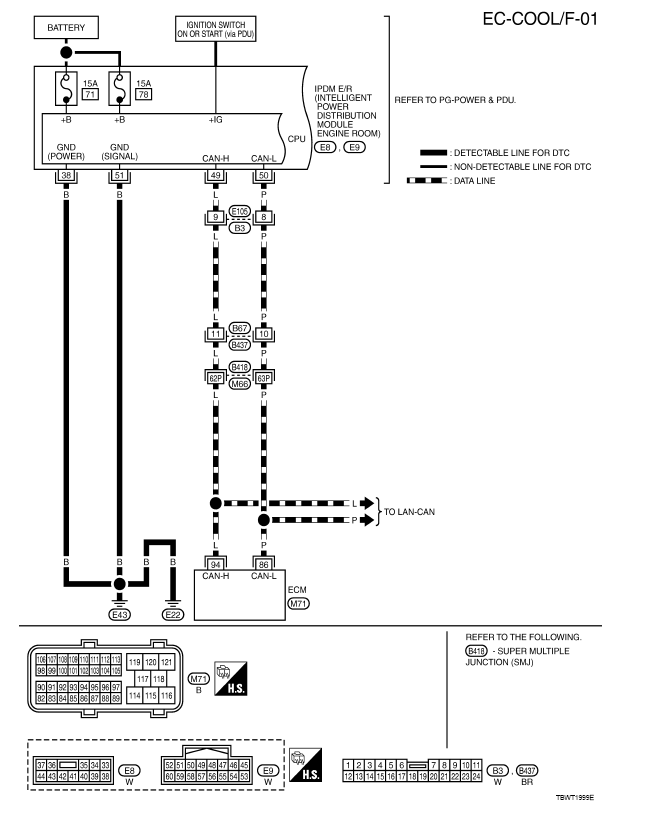

Fig 1: EC-COOL/F-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: EC-COOL/F-02 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
