Evaporative Emission Line Drawing

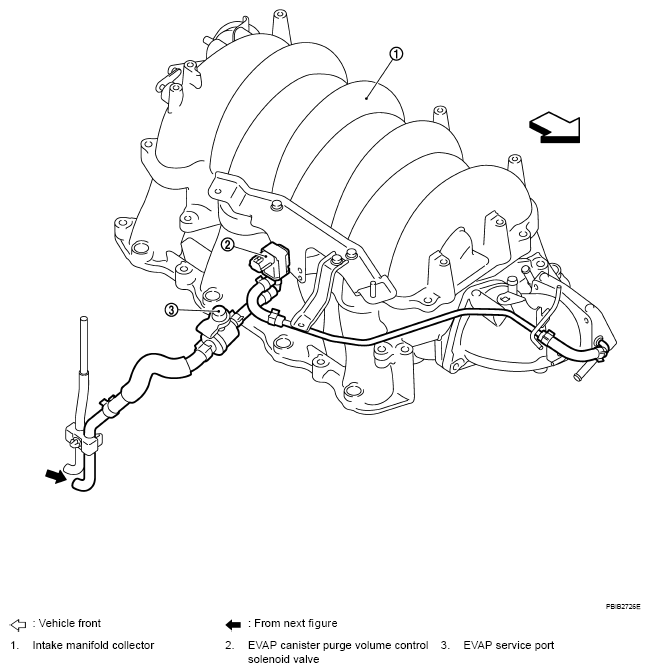

Fig 1: Evaporative Emission Line Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

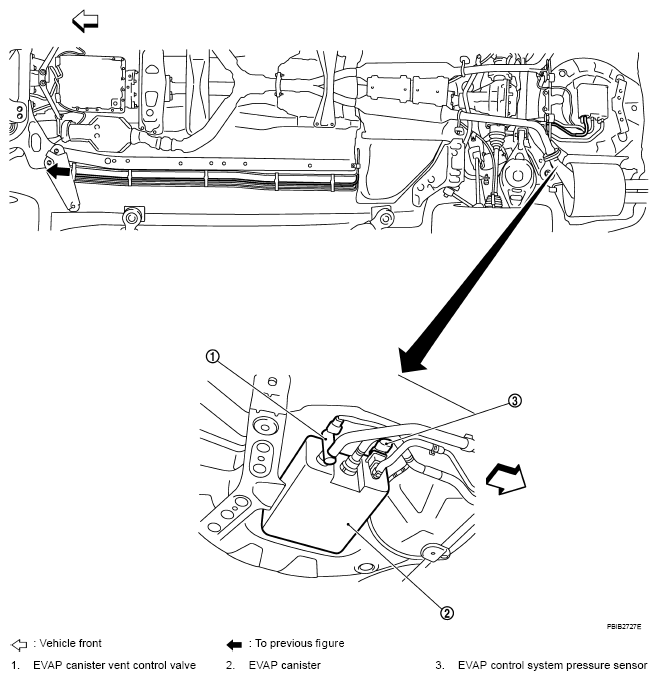

Fig 2: Evaporative Emission Line Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
