Radio Antenna: Installation

WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Locating Fender Antenna Bolt
G05156502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSTALL FENDER ANTENNA ASSEMBLY
    1. Install the antenna with the bolt.
      Fig 2: Locating Fender Antenna Bolt
      G05156502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 5 clamps and install the bolt.

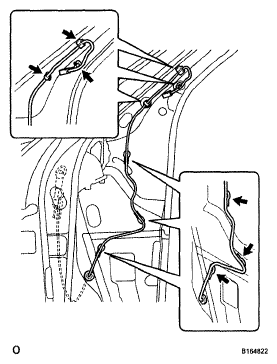

      3. Fig 3: Locating Fender Antenna Assembly Bolt And Clamps
      G05156501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  2. INSTALL FENDER APRON MUDGUARD SEAL RH  (See INSTALLATION )
  3. INSTALL ANTENNA ORNAMENT
    1. Install the antenna ornament as shown in the illustration.
      2. Fig 4: Installing Antenna Ornament
      G05156505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: Some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
