Error History
WARNING: This page is about a different car, the 2008 Infiniti FX45 and 2008 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
Diagnosis results of self-diagnosis depend on if any error occurred during the time after selecting "Self Diagnosis" until self-diagnosis results is displayed.
Meanwhile, when an error occurs before selecting "Self Diagnosis", and if an error does not occur until self-diagnosis results is displayed, a diagnosis result is judged as normal.
Consequently, a diagnosis needs to be performed with "Error History" for the past error that is not available with self-diagnosis.

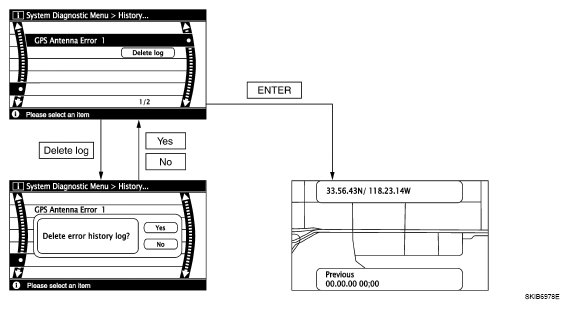

"Error History" displays the time and place of the most recent occurrence of that error. However, take note of the following points.
- Correct time of the error occurrence may not be displayed when the GPS antenna substrate within the NAVI control unit has malfunctioned.
- Place of the error occurrence is represented by the position of the vehicle mark at the time when the error occurred. If the vehicle mark has deviated from the correct position, then the place of the error occurrence may not be located correctly.
- When the ignition switch is turned ON if the error is detected, the counter increases 1. Even if it is normal when the ignition switch is turned ON the next time, the counter does not decrease.
- The upper limit of the counter is 50. 51 or more is displayed as 50. It can be reset to 0 by "Delete log" switch.
