Cross-Sectional View (VK45DE Models for AWD)
Cross-Sectional View (VK45DE Models for AWD)

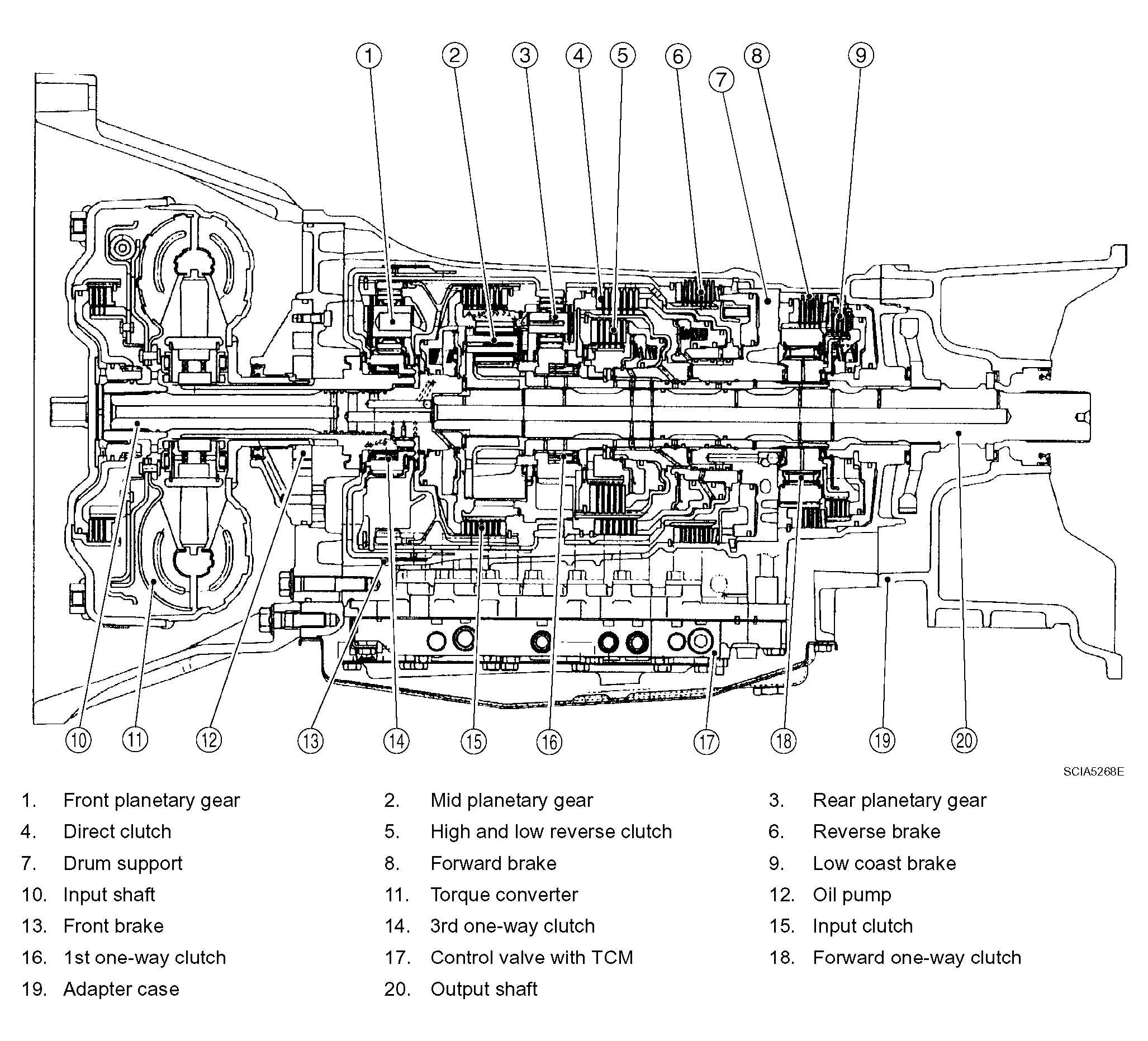

Fig 1: Identifying A/T Control System - Cross-Sectional View (VK45DE Models for AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
