Front Power Window Switch: Wiring Diagram

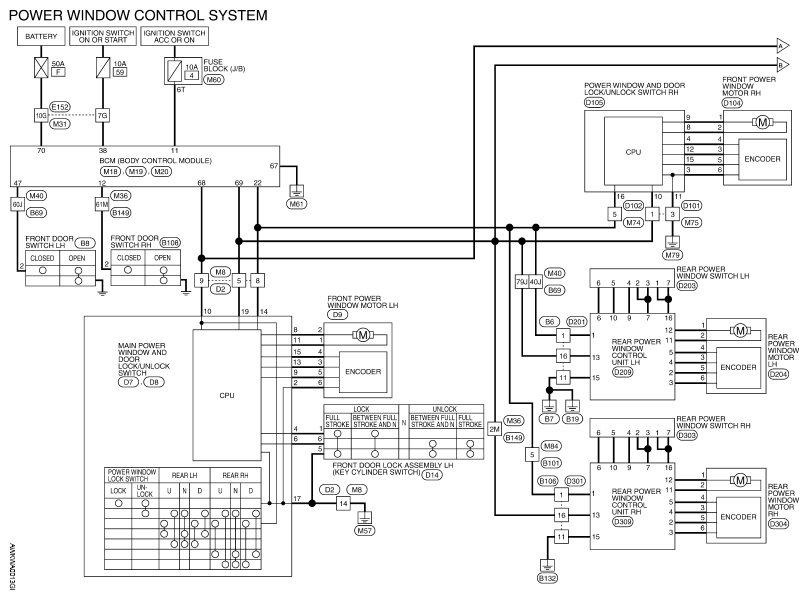

Fig 1: Power Window Control System - Wiring Diagram (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

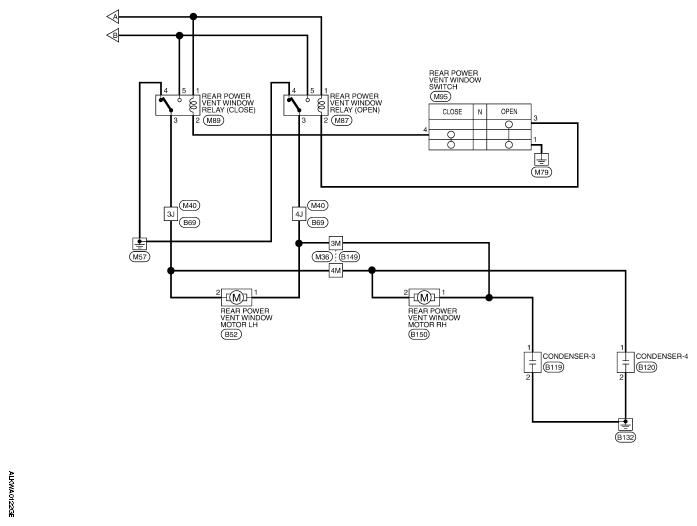

Fig 2: Power Window Control System - Wiring Diagram (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

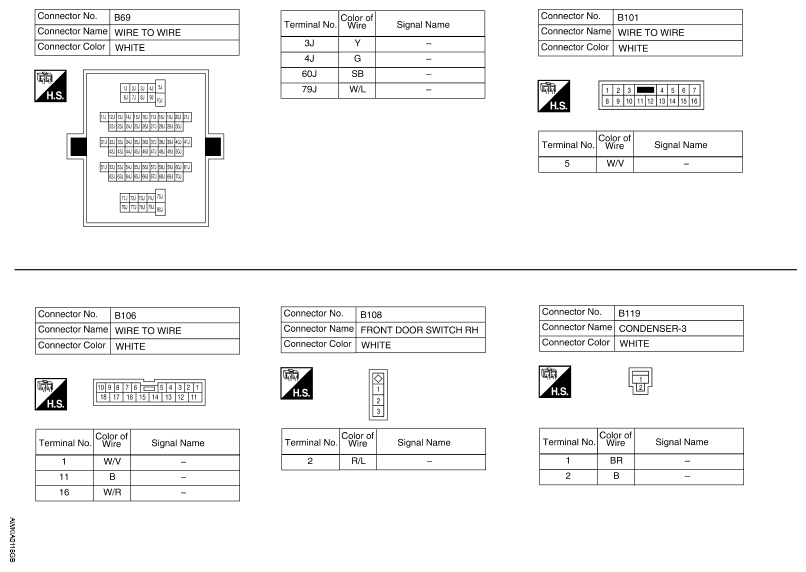

Fig 3: Identifying Power Window Control System Connector Terminal (1 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

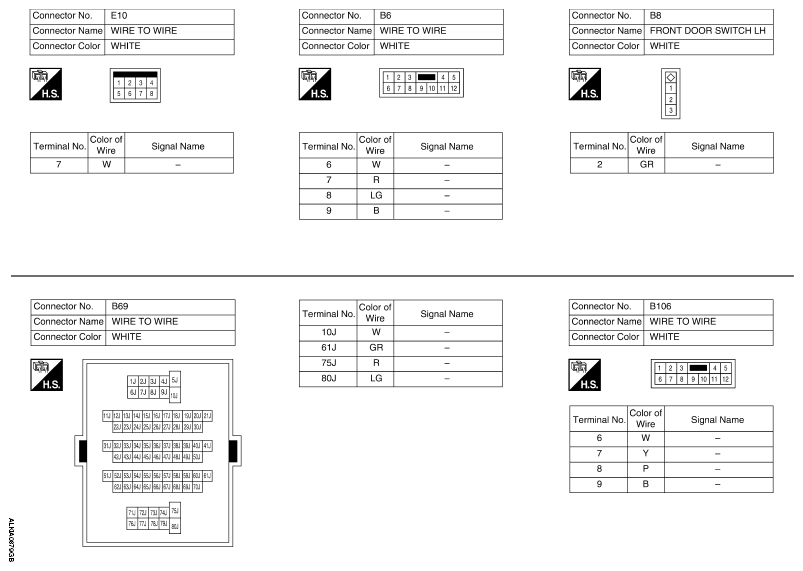

Fig 4: Identifying Power Window Control System Connector Terminal (2 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

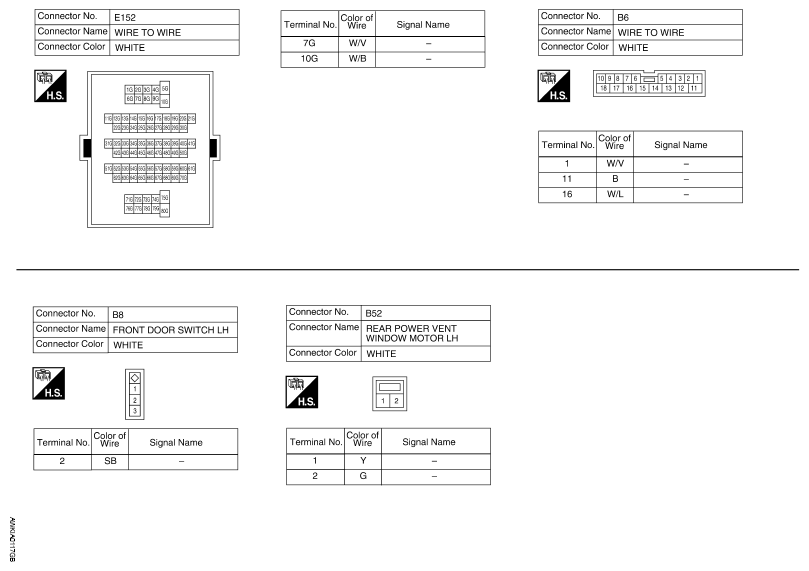

Fig 5: Identifying Power Window Control System Connector Terminal (3 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

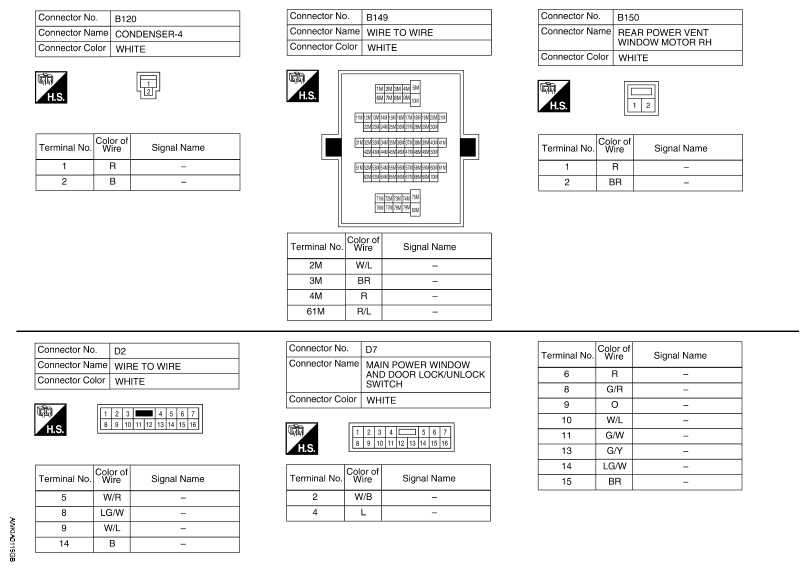

Fig 6: Identifying Power Window Control System Connector Terminal (4 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

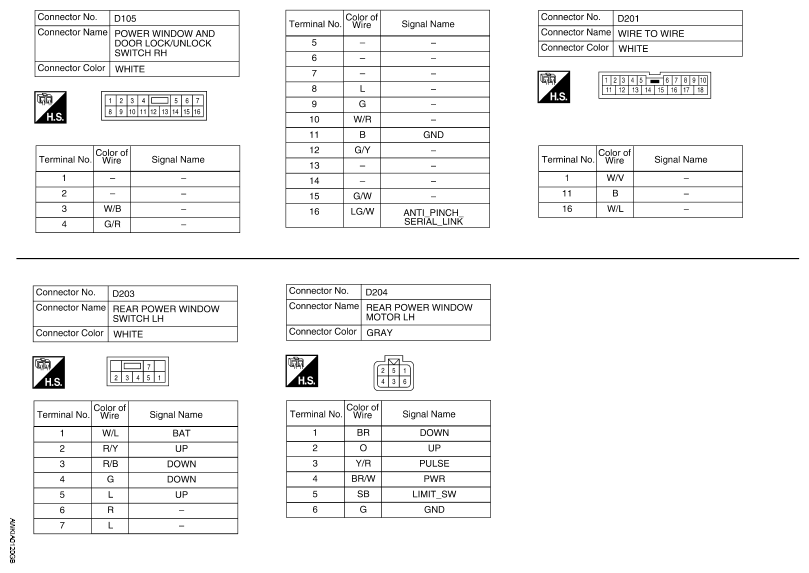

Fig 7: Identifying Power Window Control System Connector Terminal (5 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

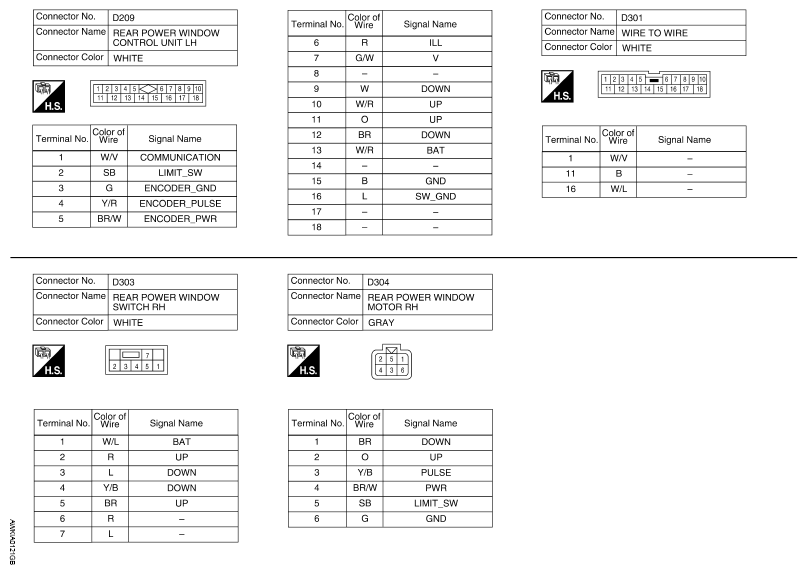

Fig 8: Identifying Power Window Control System Connector Terminal (6 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Power Window Control System Connector Terminal (7 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Power Window Control System Connector Terminal (8 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Power Window Control System Connector Terminal (9 Of 9)

Courtesy of NISSAN MOTOR CO., U.S.A.
