Wiring Diagram - ENGINE CONTROL SYSTEM -

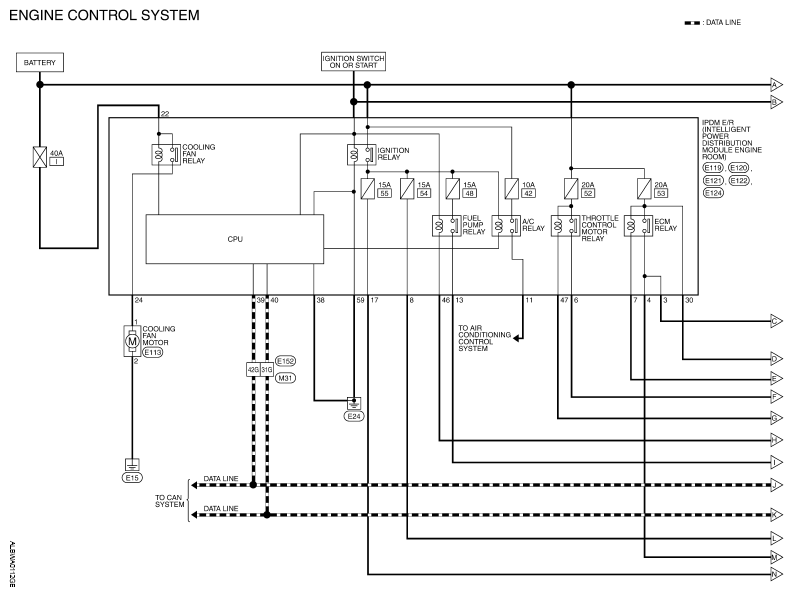

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)

G05739794

Courtesy of NISSAN MOTOR CO., U.S.A.

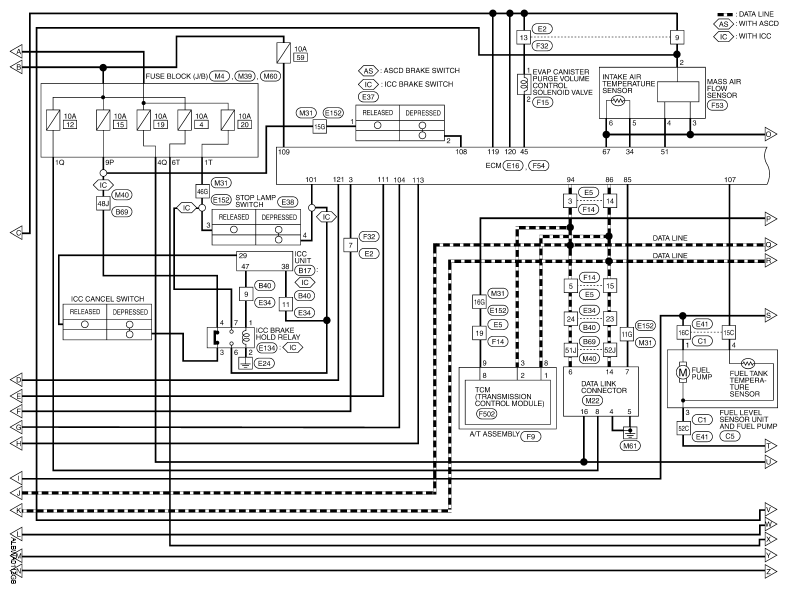

Fig 2: Engine Control System - Wiring Diagram (2 Of 5)

G05739795

Courtesy of NISSAN MOTOR CO., U.S.A.

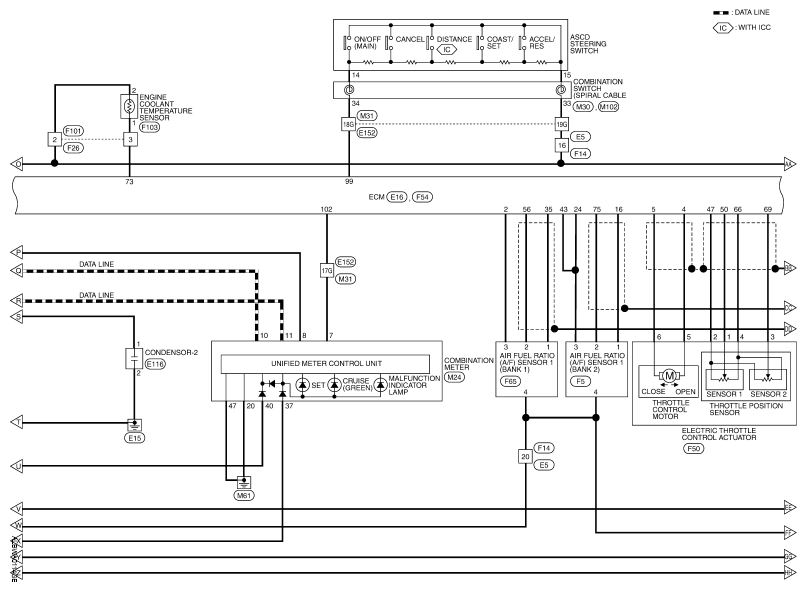

Fig 3: Engine Control System - Wiring Diagram (3 Of 5)

G05739796

Courtesy of NISSAN MOTOR CO., U.S.A.

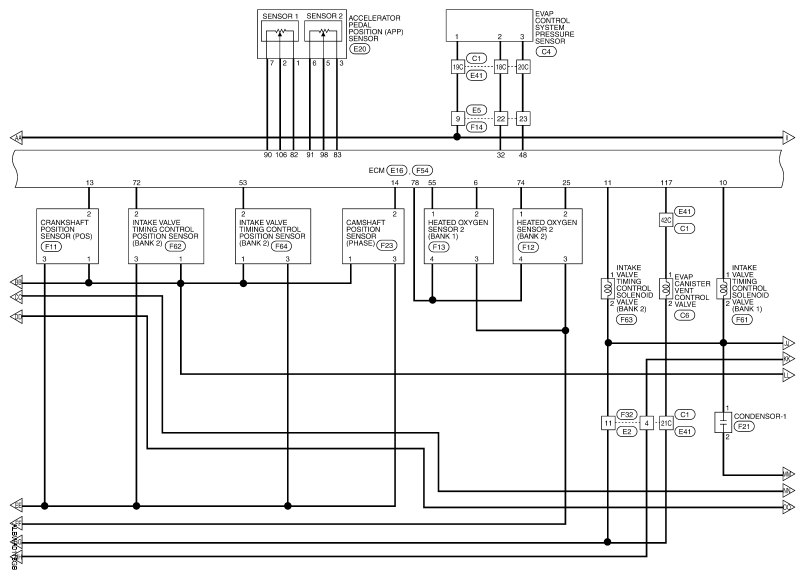

Fig 4: Engine Control System - Wiring Diagram (4 Of 5)

G05739797

Courtesy of NISSAN MOTOR CO., U.S.A.

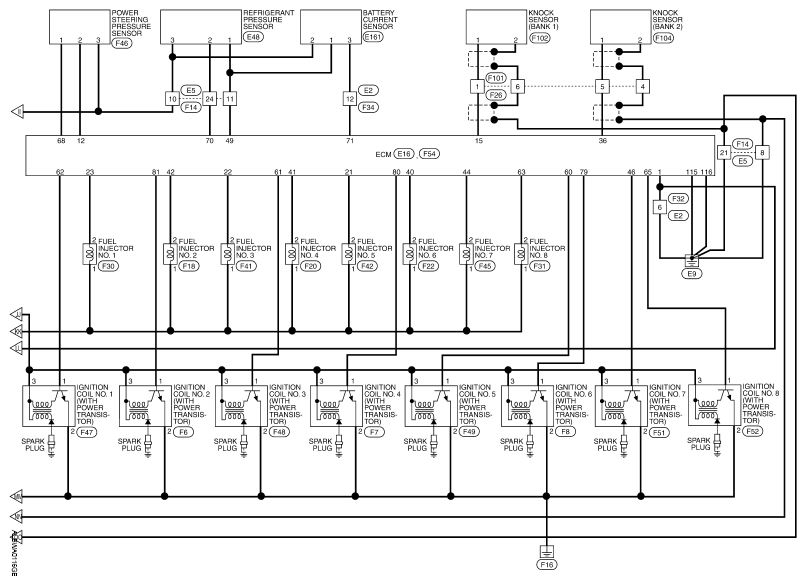

Fig 5: Engine Control System - Wiring Diagram (5 Of 5)

G05739798

Courtesy of NISSAN MOTOR CO., U.S.A.

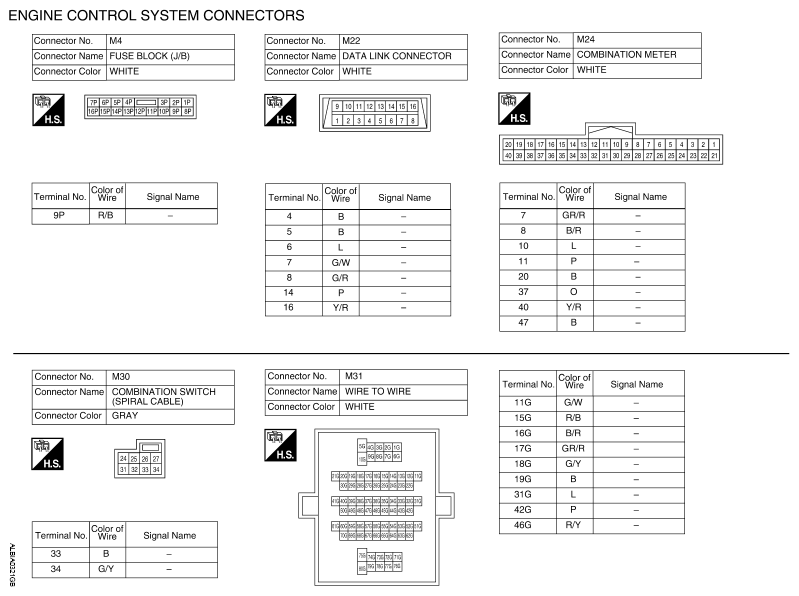

Fig 6: Identifying Engine Control System Connectors (1 Of 15)

G05739799

Courtesy of NISSAN MOTOR CO., U.S.A.

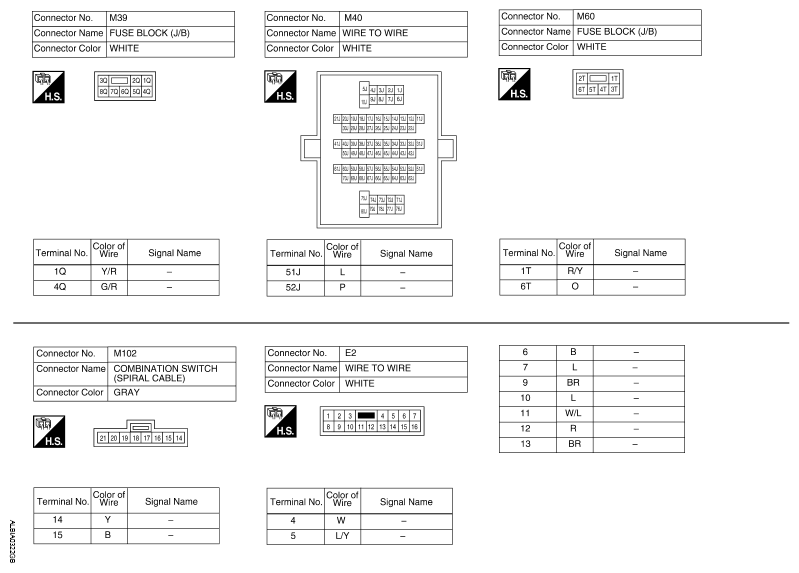

Fig 7: Identifying Engine Control System Connectors (2 Of 15)

G05739800

Courtesy of NISSAN MOTOR CO., U.S.A.

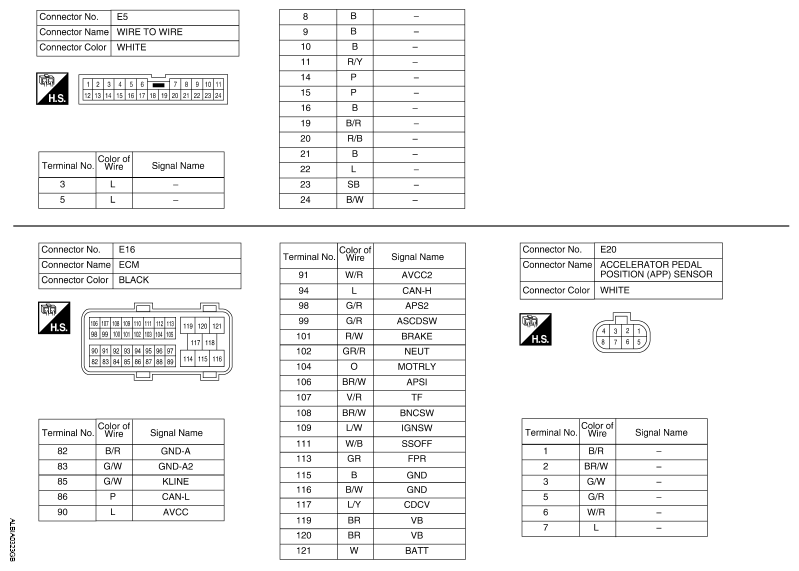

Fig 8: Identifying Engine Control System Connectors (3 Of 15)

G05739801

Courtesy of NISSAN MOTOR CO., U.S.A.

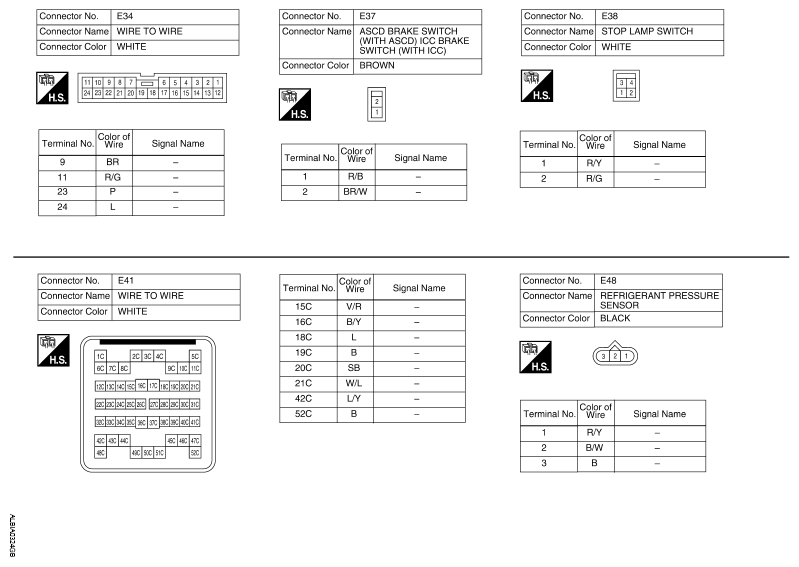

Fig 9: Identifying Engine Control System Connectors (4 Of 15)

G05739802

Courtesy of NISSAN MOTOR CO., U.S.A.

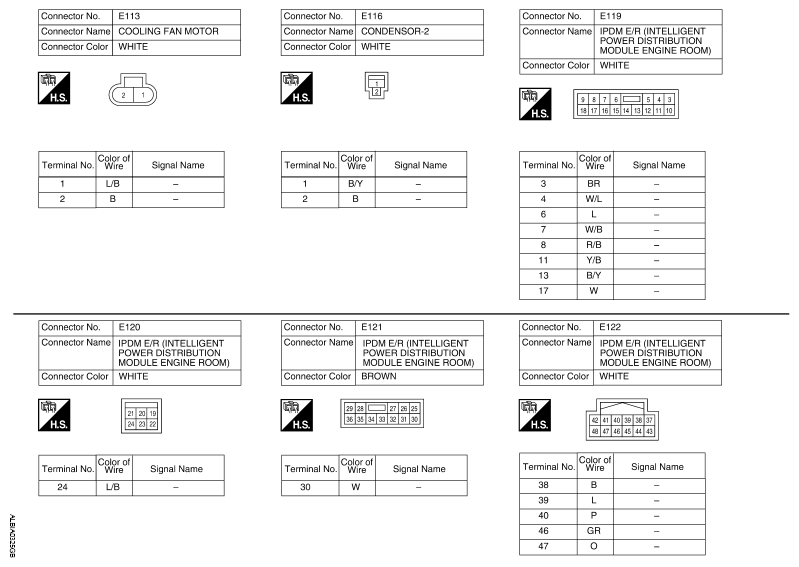

Fig 10: Identifying Engine Control System Connectors (5 Of 15)

G05739803

Courtesy of NISSAN MOTOR CO., U.S.A.

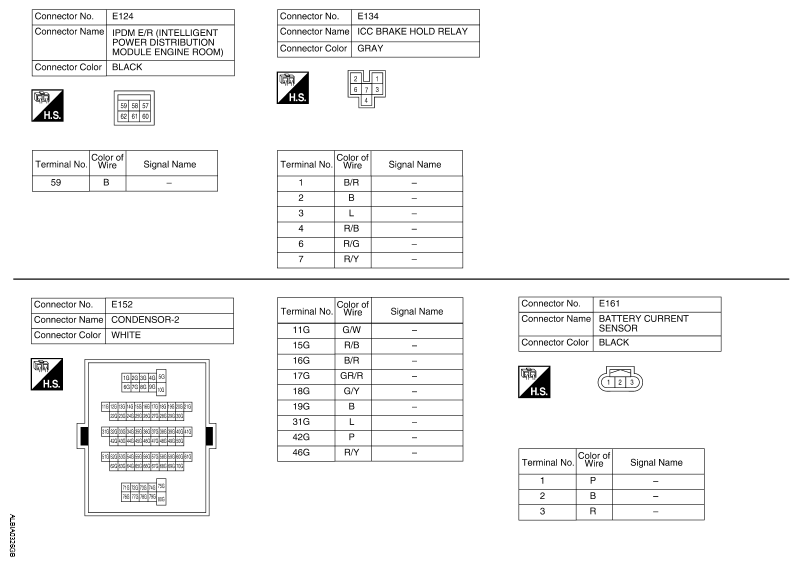

Fig 11: Identifying Engine Control System Connectors (6 Of 15)

G05739804

Courtesy of NISSAN MOTOR CO., U.S.A.

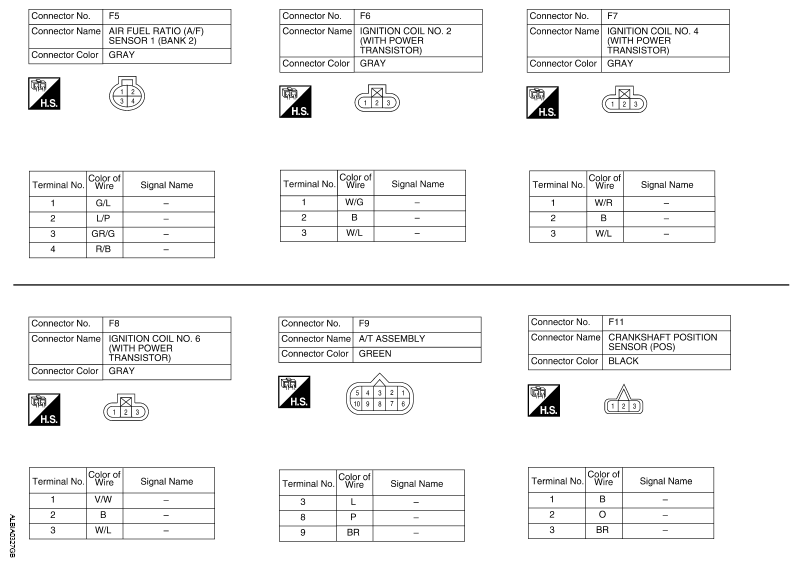

Fig 12: Identifying Engine Control System Connectors (7 Of 15)

G05739805

Courtesy of NISSAN MOTOR CO., U.S.A.

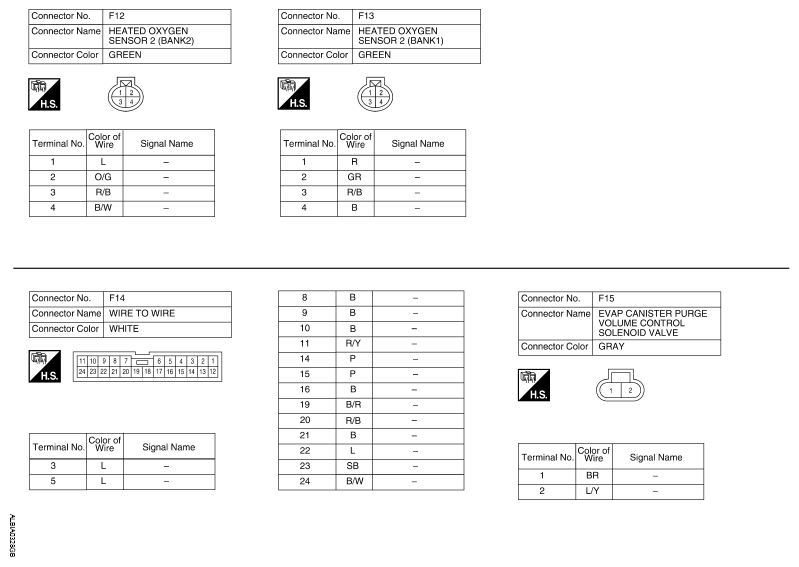

Fig 13: Identifying Engine Control System Connectors (8 Of 15)

G05739806

Courtesy of NISSAN MOTOR CO., U.S.A.

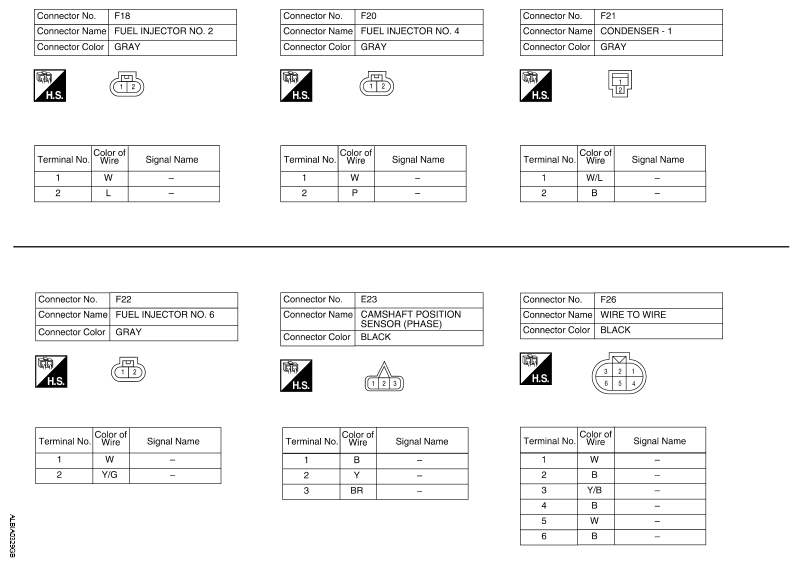

Fig 14: Identifying Engine Control System Connectors (9 Of 15)

G05739807

Courtesy of NISSAN MOTOR CO., U.S.A.

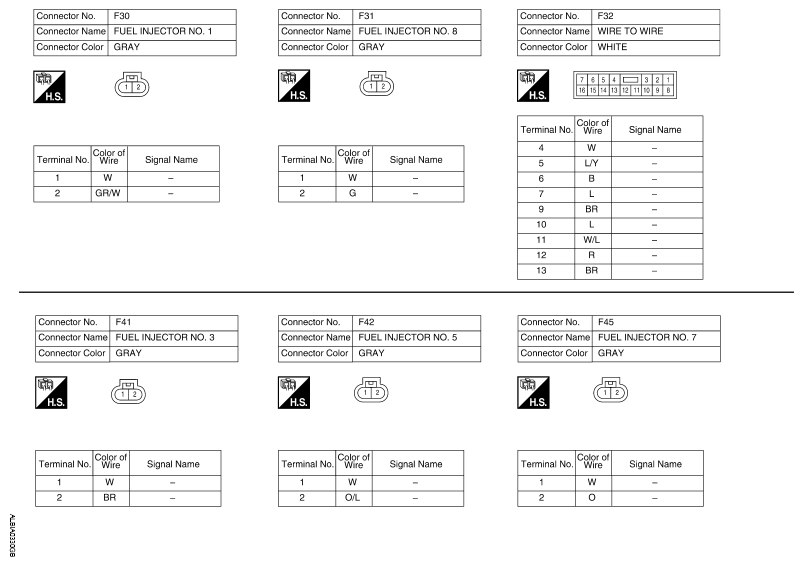

Fig 15: Identifying Engine Control System Connectors (10 Of 15)

G05739808

Courtesy of NISSAN MOTOR CO., U.S.A.

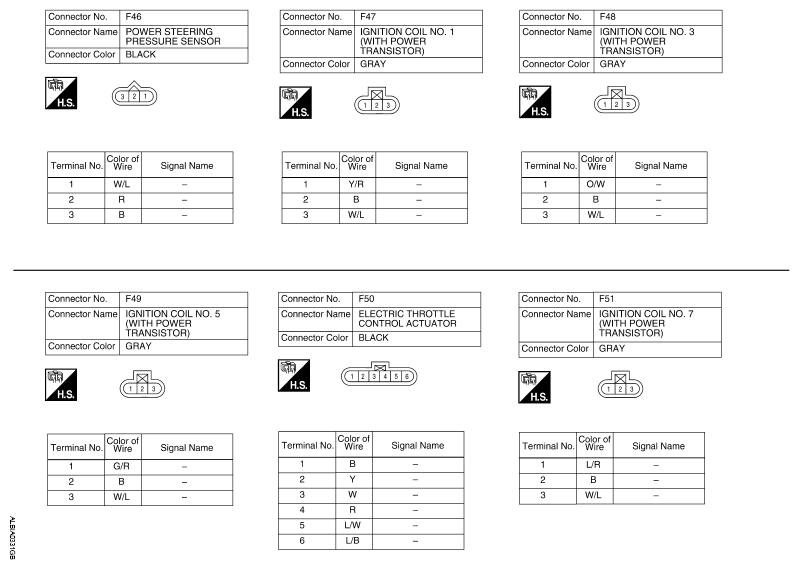

Fig 16: Identifying Engine Control System Connectors (11 Of 15)

G05739809

Courtesy of NISSAN MOTOR CO., U.S.A.

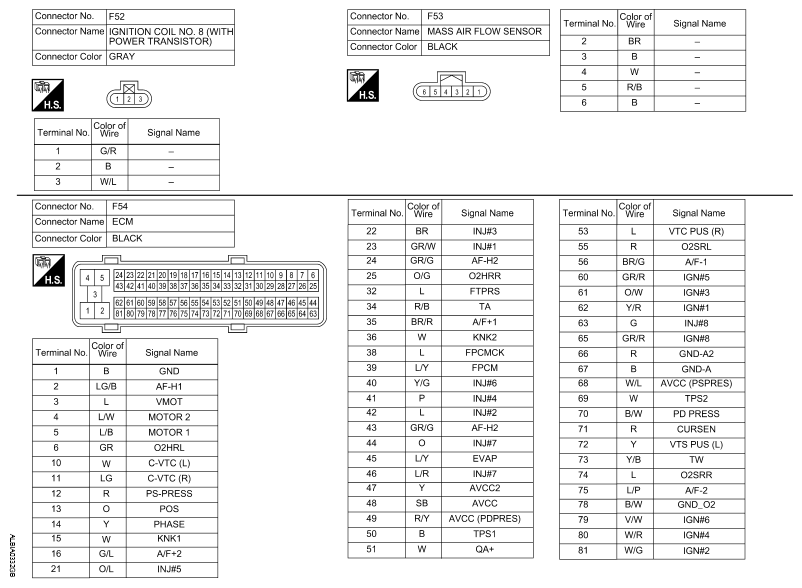

Fig 17: Identifying Engine Control System Connectors (12 Of 15)

G05739810

Courtesy of NISSAN MOTOR CO., U.S.A.

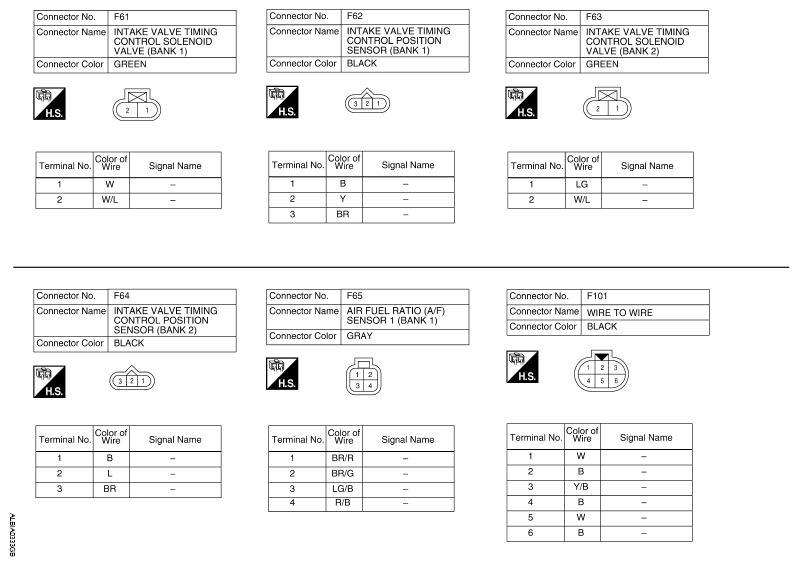

Fig 18: Identifying Engine Control System Connectors (13 Of 15)

G05739811

Courtesy of NISSAN MOTOR CO., U.S.A.

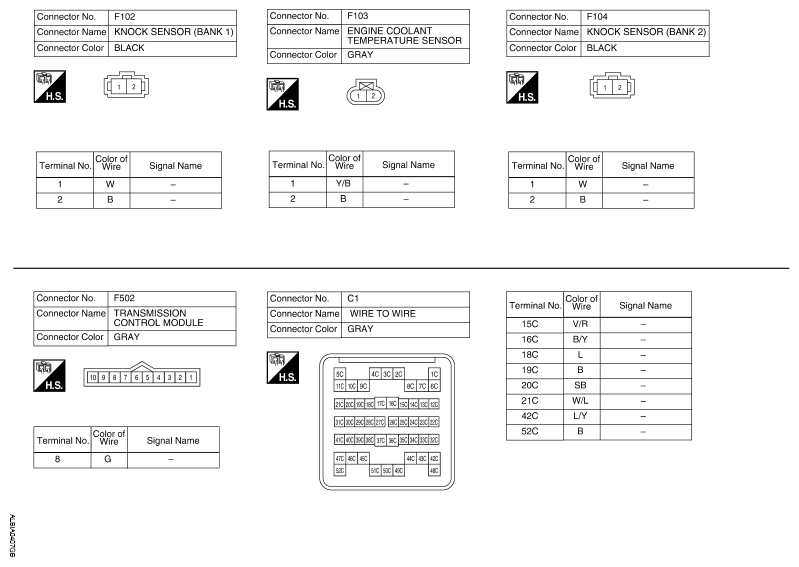

Fig 19: Identifying Engine Control System Connectors (14 Of 15)

G05739812

Courtesy of NISSAN MOTOR CO., U.S.A.

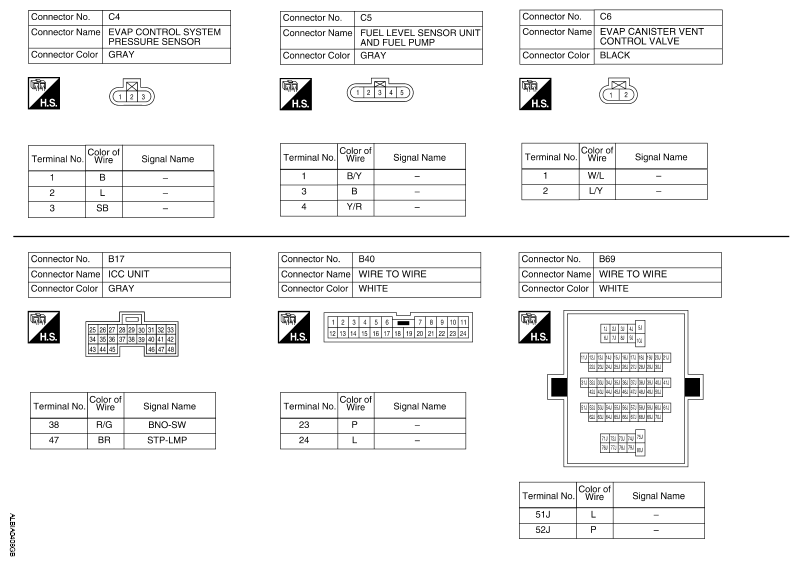

Fig 20: Identifying Engine Control System Connectors (15 Of 15)

G05739813

Courtesy of NISSAN MOTOR CO., U.S.A.
