Overall Sequence

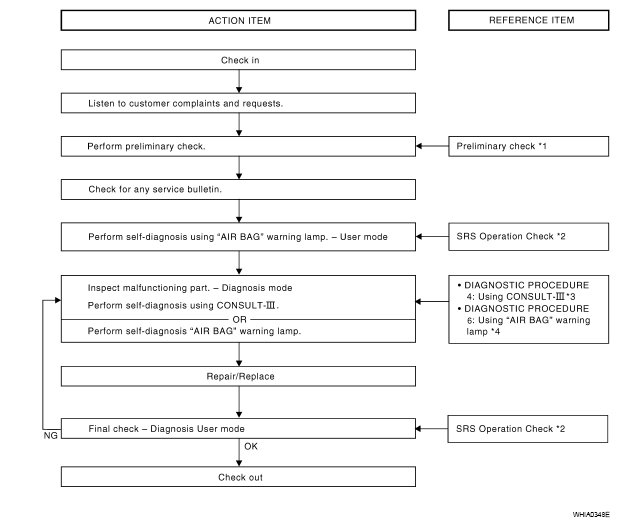

Fig 1: Diagnosis And Repair Work Flow Chart
G05741402Courtesy of NISSAN MOTOR CO., U.S.A.
*1 Trouble Diagnosis Introduction
*2 SRS Operation Check
*3 Trouble Diagnosis with CONSULT-III
*4 Trouble Diagnosis without CONSULT-III
