Infiniti
›
2008
›
QX56 AWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Transmission
›
On-Vehicle Repair
›
Control Valve And TCM
›
Control Valve with TCM and A/T Fluid Temperature Sensor 2
›
Components
Control Valve with TCM and A/T Fluid Temperature Sensor 2: Components

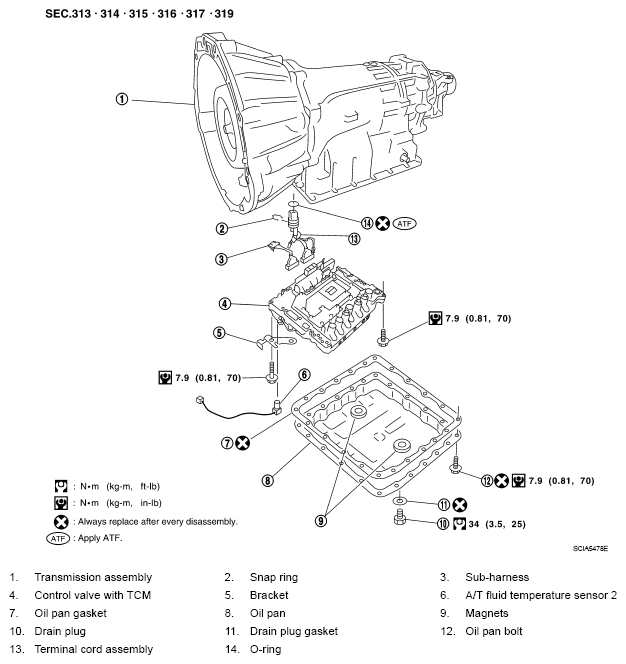

Fig 1: Identifying Control Valve With TCM Components
