Basic Inspection
›
Diagnosis And Repair Work Flow
›
Work Flow
›
Overall Sequence
Overall Sequence

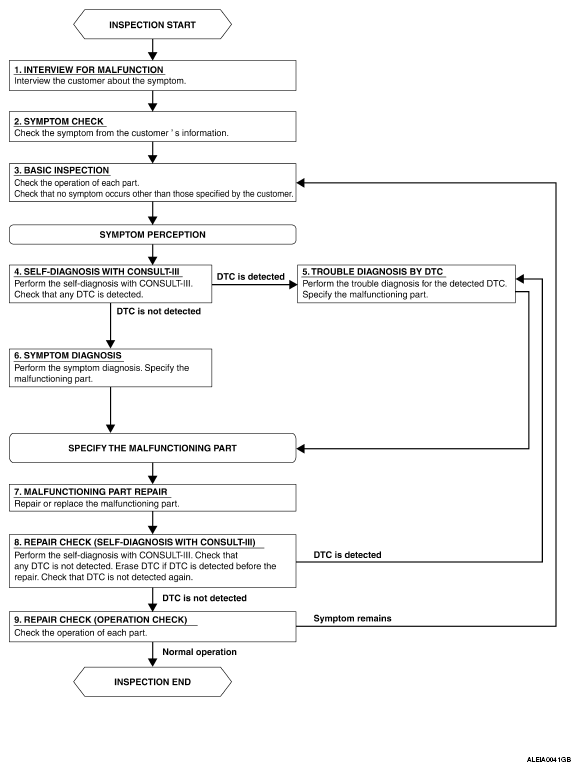

Fig 1: Diagnosis And Repair Work Flow Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
