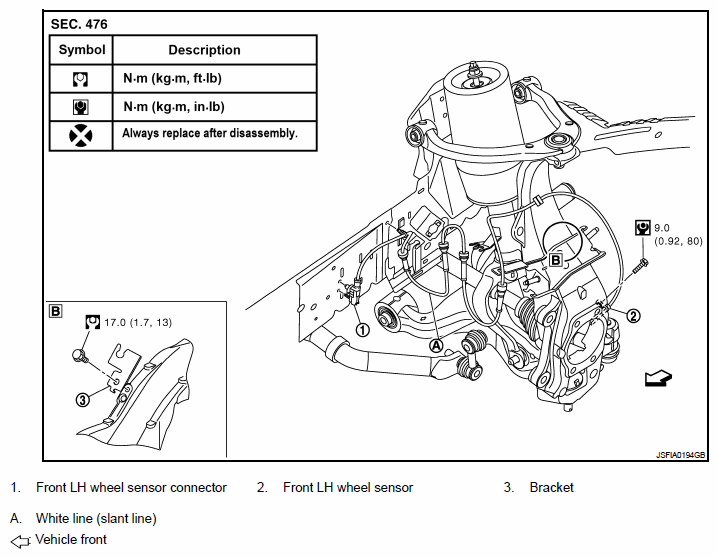

FRONT WHEEL SENSOR : Exploded View

Fig 1: Identifying Front Wheel Sensor Components

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to COMPONENTS in GENERAL INFORMATION for symbol marks in the figure.

NOTE: The above figure shows left side. Right side is the mirror image.
