Engine Compartment

NOTE: For circuit wiring diagram, see POWER SUPPLY ROUTING CIRCUIT in the POWER SUPPLY, GROUND & CIRCUIT ELEMENTS article in ELECTRICAL.

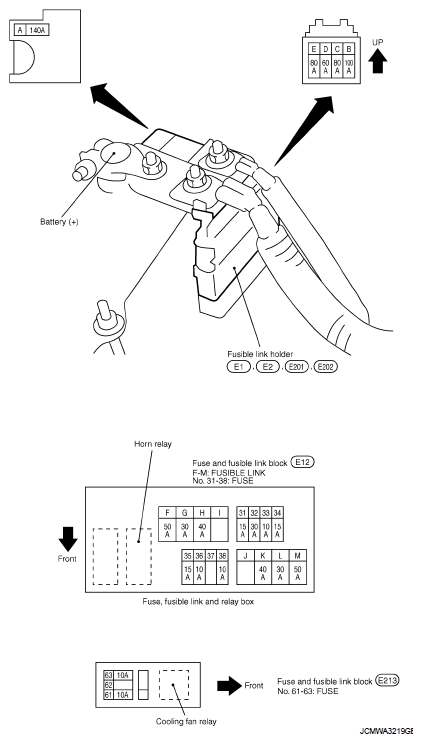

Fig 1: Identifying Engine Compartment Fusible Link/Fuse Blocks Arrangements
G06296095Courtesy of NISSAN MOTOR CO., U.S.A.
Fusible Link Holder Assignments

Fusible Link Amps Circuit
A 140 A Starting/Charging System & Fusible Links B, C, D, E
B 100 A In Fuse, Fusible Link and Relay Box: Fusible Links F, G, H, K, L, M, & Fuses 31-38, 61, 63
C 80 A In IPDM E/R: Ignition Relay, CPU, & Fuses 48-51
D 60 A In IPDM E/R: Tail Lamp Relay, Headlamp Relay, & Fuses 58-60
E 80 A In Fuse Block (J/B): Acc.Relay, Blower Relay, Rear Window Defogger Relay, & Fuses 6-11
Fuse & Fusible Link Block Assignments

Fusible Link/Fuse Amps Circuit
Fusible Link F 50 A Cooling Fans System
Fusible Link G 30 A Ignition Relay
Fusible Link H 40 A Fuses 61, 63
Fusible Link I - Blank
Fusible Link J - Blank
Fusible Link K 40 A BCM, Seats, Memory Systems
Fusible Link L 30 A ABS System
Fusible Link M 50 A ABS System
Fuse 31 15 A Horns, Starting/Charging
Fuse 32 30 A Seats System
Fuse 33 10 A Transmissions System
Fuse 34 15 A Navigation, Sound Systems
Fuse 35 15 A Seats System
Fuse 36 10 A Transmissions System
Fuse 37 - Blank
Fuse 38 10 A Horns Systems
Fuse 61 10 A Cruise Control System
Fuse 62 - Blank
Fuse 63 10 A Cruise Control System

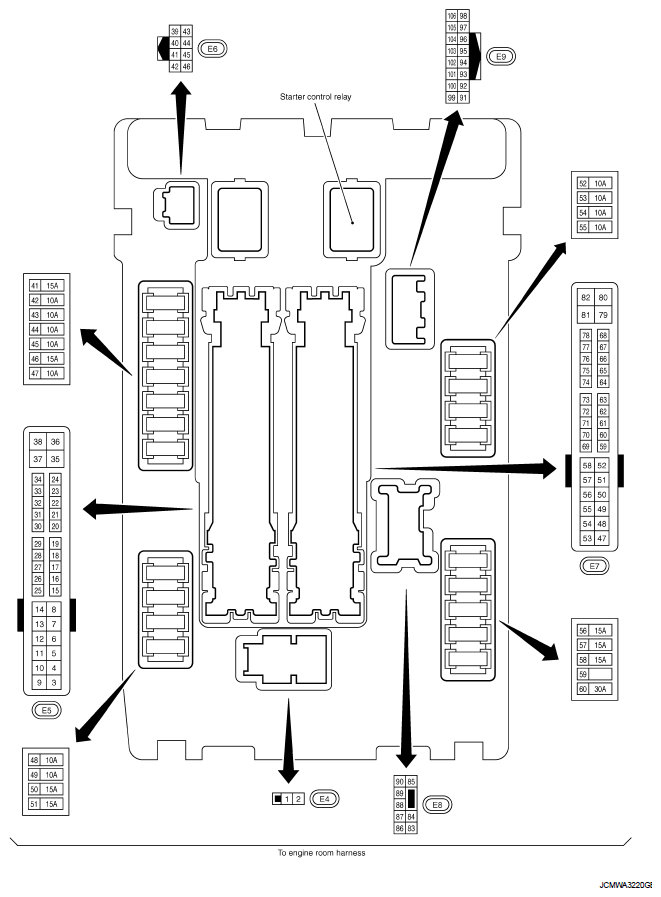

Fig 2: Identifying IPDM E/R Terminal Arrangements
G06296096Courtesy of NISSAN MOTOR CO., U.S.A.
IPDM E/R Assignments

Fuse Amps Circuit
41 15 A Fuel Pump Relay
42 10 A Cooling Fans System
43 10 A Transmissions System
44 10 A BCM, Engine Controls System
45 10 A ABS, Electronic Power Steering, Engine Controls, Transmissions Systems
46 15 A Engine Controls System
47 10 A Instrument Cluster
48 10 A Steering Lock Relay
49 10 A A/C Relay
50 15 A ECM Relay, Engine Controls System
51 15 A CPU, Throttle Control Motor Relay
52 10 A Exterior Lights System
53 10 A Exterior Lights, Interior Lights Systems
54 10 A Headlights System
55 10 A Headlights System
56 15 A Headlights System
57 15 A Headlights System
58 15 A Front Fog Lamp Relay
59 - Blank
60 30 A Front Wiper Relay
