Disassembly and Assembly: Disassembly

  1. Remove console lid assembly.
    • Open the console lid.
    • Remove console mask (1) fixing pawls with remover tool (A).

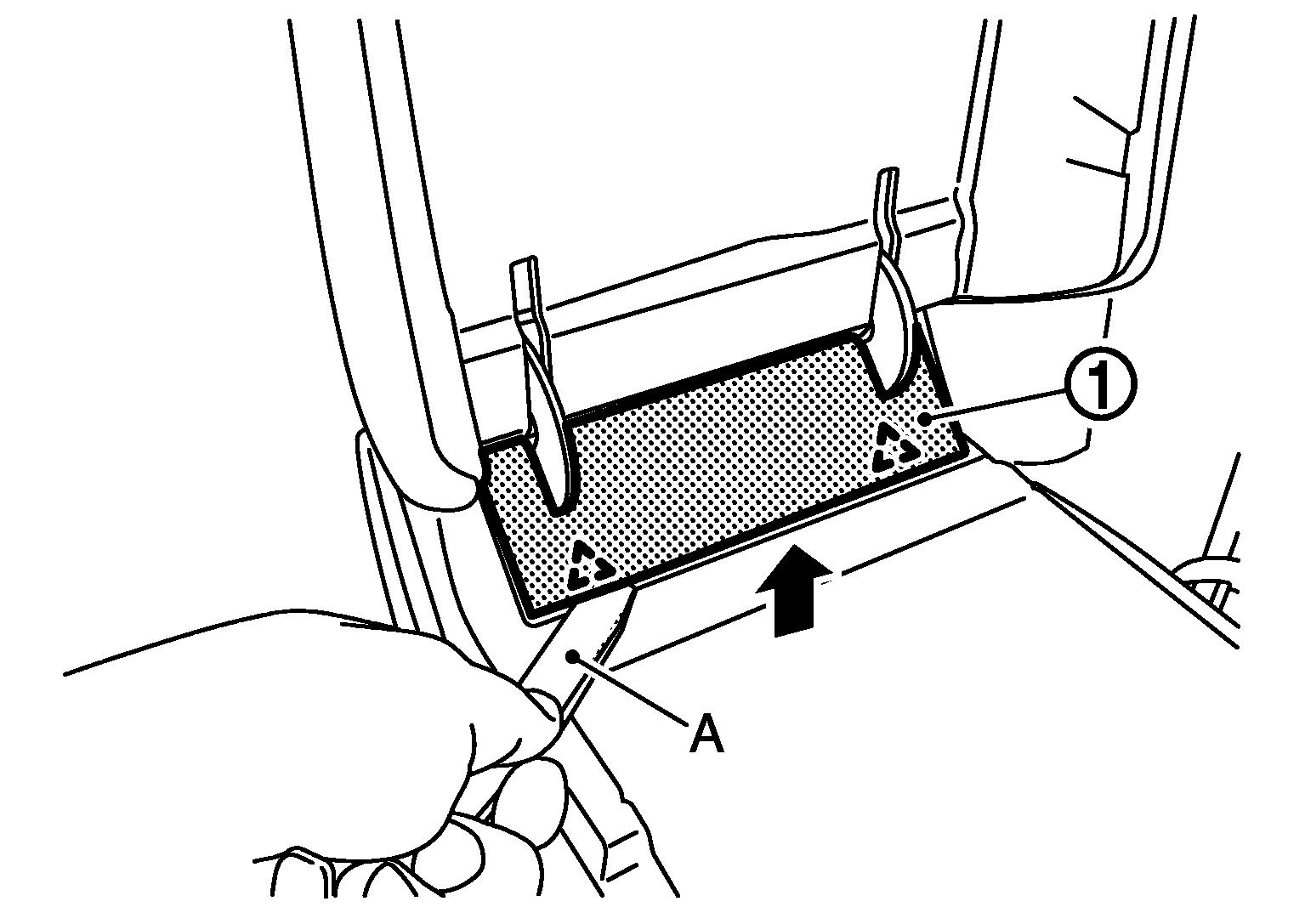

      Fig 1: Removing Console Mask
      G06301395Courtesy of NISSAN MOTOR CO., U.S.A.
    • Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.
      Fig 2: Identifying Console Lid Assembly And Screws
      G05729923Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove console pocket.
  3. Reverse a center console assembly.
  4. Remove console sub harness.
    • Remove console sub harness (1) fixing screws (A).
    • Remove console sub harness fixing clip (B).
    • Disconnect switch connectors.
      Fig 3: Identifying Console Sub Harness And Clip
      G05729924Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove switch panel.
    • Remove switch panel (1) fixing screws (A).
    • Pull back switch panel.
      Fig 4: Identifying Switch Panel And Screws
      G05729925Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove console pad LH.
    • Remove console pad LH (1) fixing screws (A).
    • Pull the console pad LH crosswise.
      Fig 5: Identifying Console Pad LH And Screws
      G05729926Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove console pad RH.
    • Remove console pad RH (1) fixing screws (A).
    • Pull the console pad RH crosswise.
      Fig 6: Identifying Console Pad RH And Screws
      G05729927Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove console center bracket.
    • Remove console center bracket (1) fixing screws (A).
    • Pull up console center bracket.
      Fig 7: Removing Console Center Bracket
      G05729928Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Remove console upper bracket.
    • Remove console upper bracket (1) fixing screws (A).
    • Pull up console upper bracket.
      Fig 8: Removing Console Upper Bracket
      G05729929Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove cup holder assembly.
    • Remove cup holder assembly (1) fixing screws (A).
    • Pull up cup holder assembly.
      Fig 9: Identifying Cup Holder Assembly With Screws
      G05729930Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove power outlet (1).

    Refer to "Console Power Socket : Removal And Installation ".

  12. Remove auxiliary input jacks (2).

    Refer to "Removal And Installation ".

  13. Remove i-pod connector (3).

    Refer to "Removal And Installation ".

    Fig 10: Identifying Auxiliary Input Jacks, I-Pod Connector And Power Outlet
    G05729931Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove console finisher.
    • Disengage pawls while pulling console finisher (1).
    • Pull up console finisher.

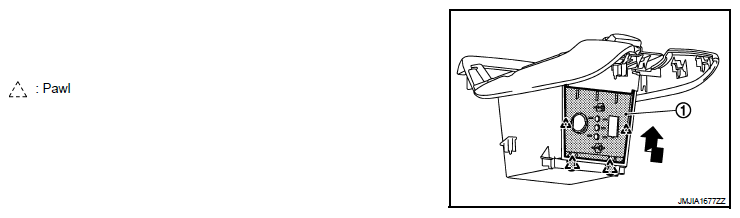

      Fig 11: Pulling Up Console Finisher
      G06301405Courtesy of NISSAN MOTOR CO., U.S.A.
