Exploded View
Exploded View

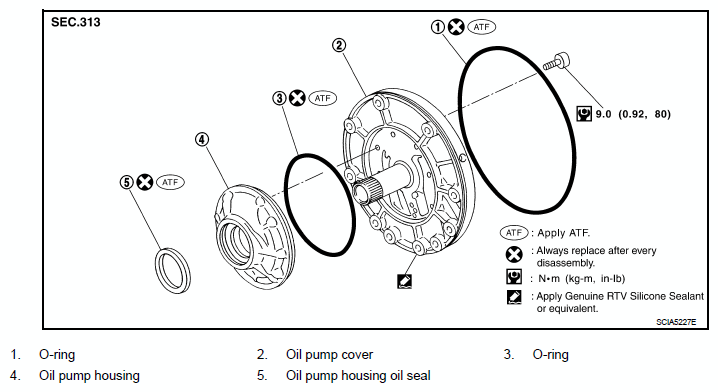

Fig 1: Oil Pump And Housing With O-Ring With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
