Oil Channel

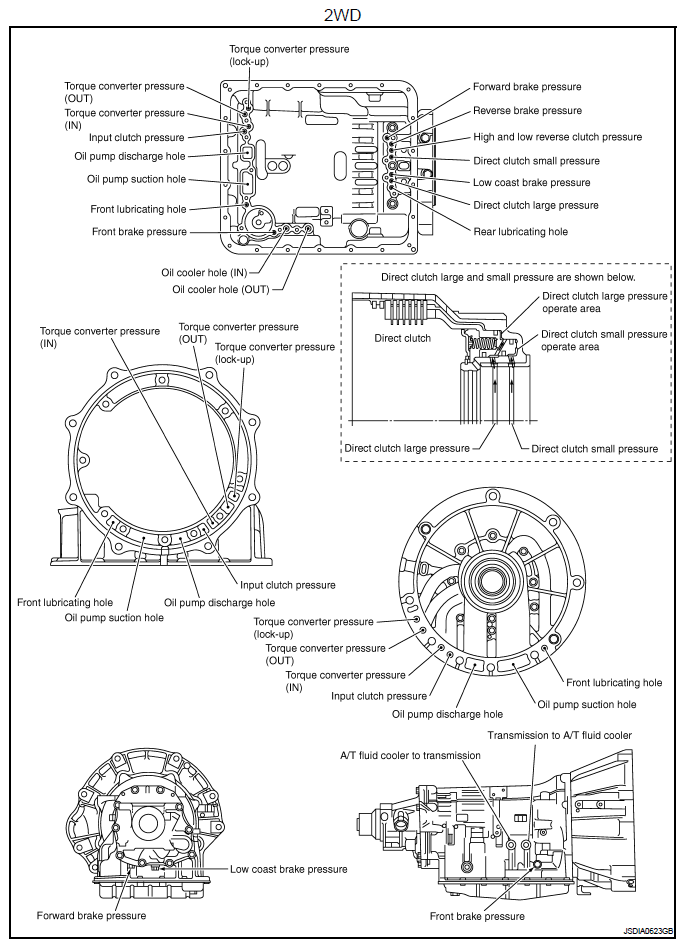

Fig 1: Identifying Oil Channel (2WD)
Courtesy of NISSAN MOTOR CO., U.S.A.

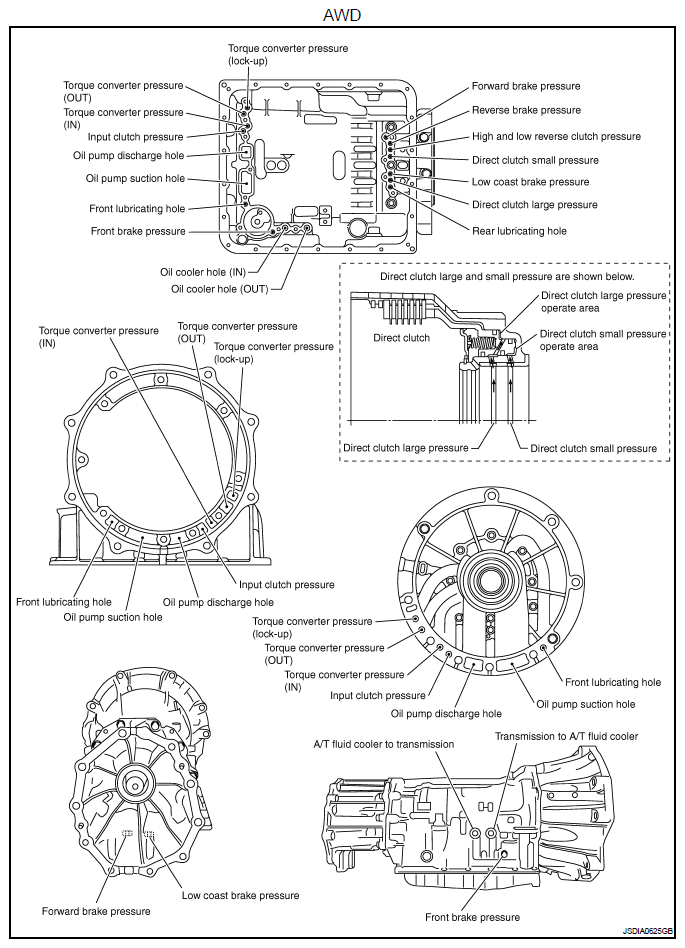

Fig 2: Identifying Oil Channel (AWD)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
