2WD : Exploded View

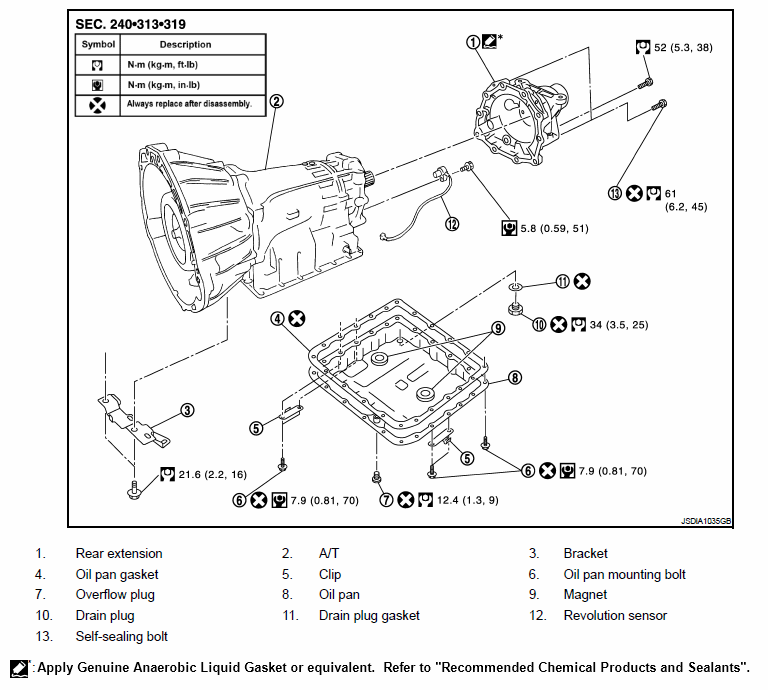

Fig 1: Revolution Sensor And Oil Pan Replacement Components (2WD) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols not described on the above.
