System - Engine Mechanical & Other

Fig 1: Engine Control System Symptoms Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

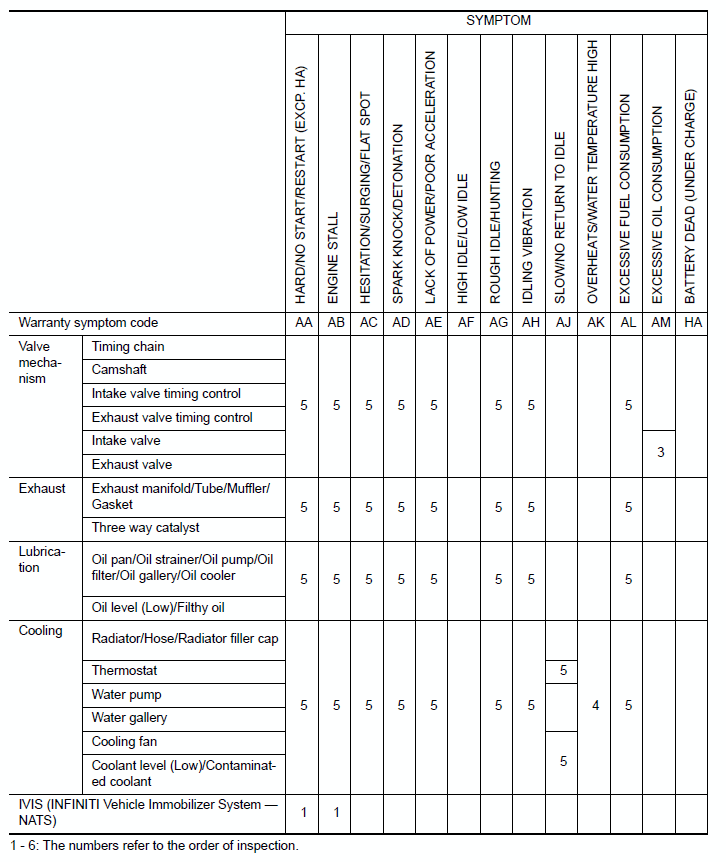

Fig 2: Engine Control System Symptoms Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
