VQ35HR : Exploded View: Disassembly

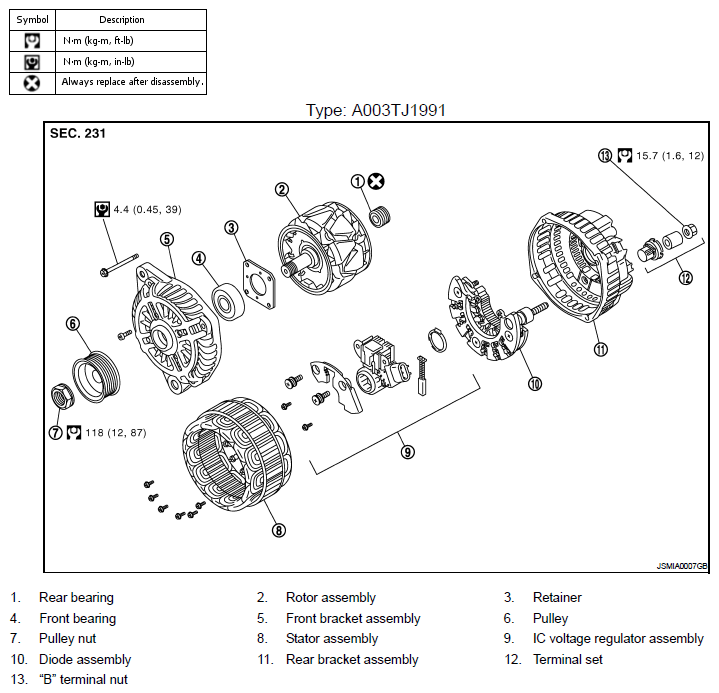

Fig 1: Exploded View Of Alternator - VQ35HR (Type: A003TJ1991) With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
