IGNITION TIMING : Special Repair Requirement

CHECK IGNITION TIMING
1. Attach timing light to loop wire as shown.

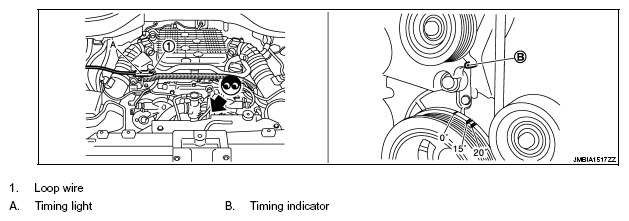

  Fig 1: Identifying Timing Light Attachment With Loop Wire
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.
  INSPECTION END
