Engine Control System - Introduction (VQ35HR)
›
Function Diagnosis
›
Engine Control System
›
System Diagram
System Diagram

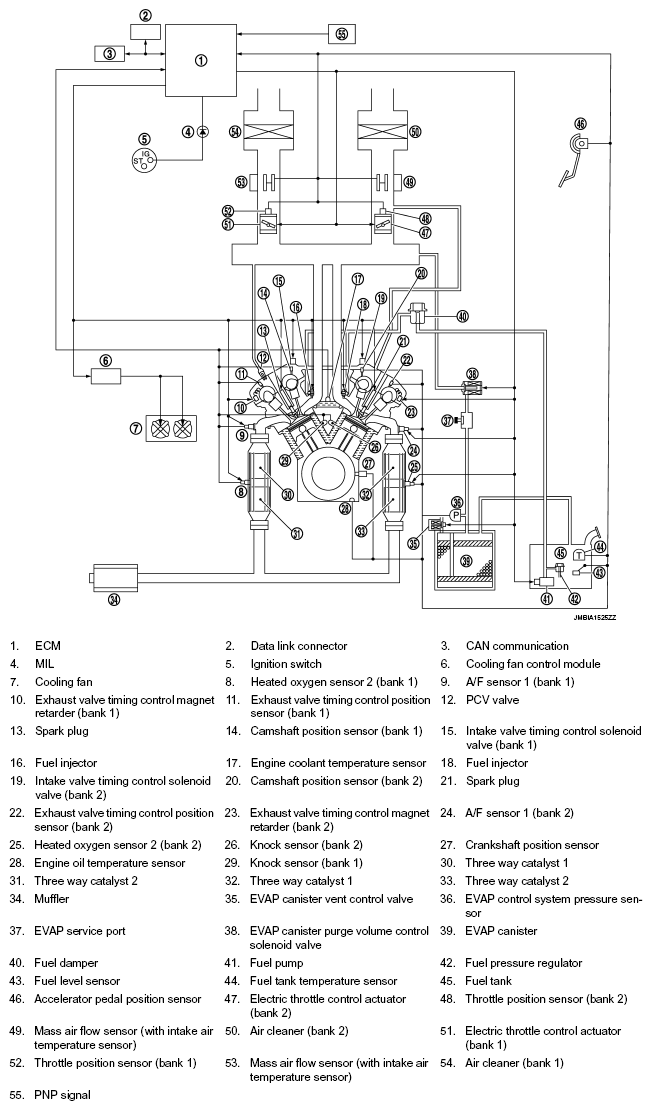

Fig 1: Engine Control System Diagram
