Removal and Installation: Removal

1. Remove the instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
2. Disconnect the key slot connector.
3. Remove the mounting screw (A), and then remove the key slot (1).

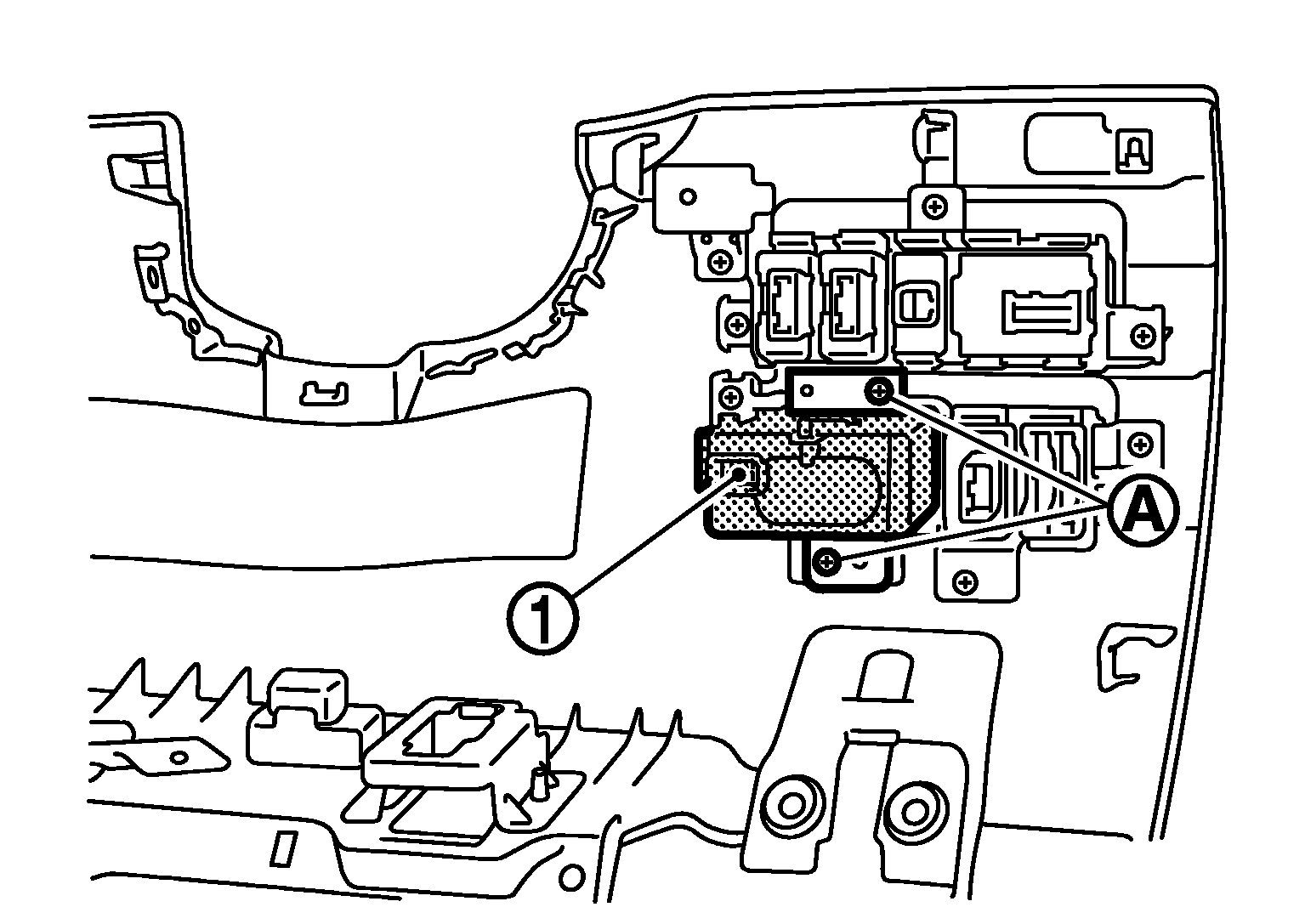

Fig 1: Identifying Mounting Screw And Key Slot

Courtesy of NISSAN MOTOR CO., U.S.A.
