Seat Belt Control System
›
Function Diagnosis
›
Seat Belt Warning System
›
Component Parts Location
Component Parts Location

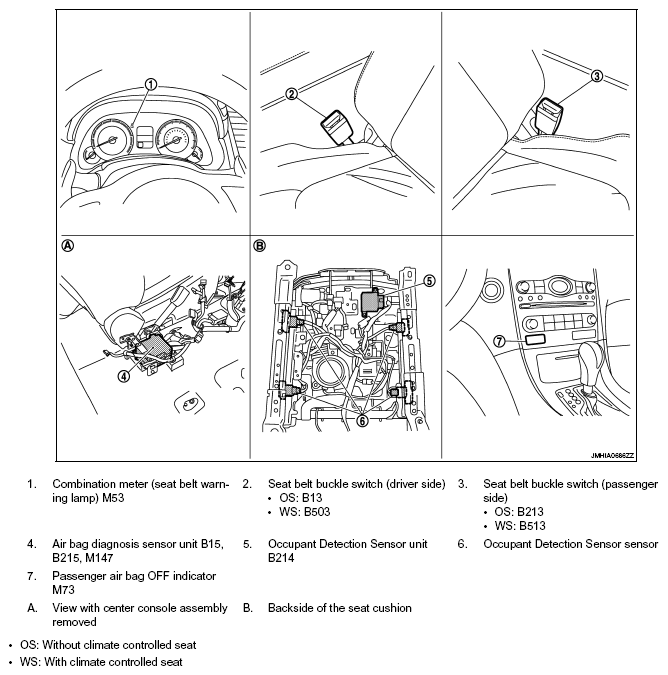

Fig 1: Identifying Seat Belt Warning System Component Parts Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
