Continuous Damping Control System
›
Component Parts Location
Component Parts Location

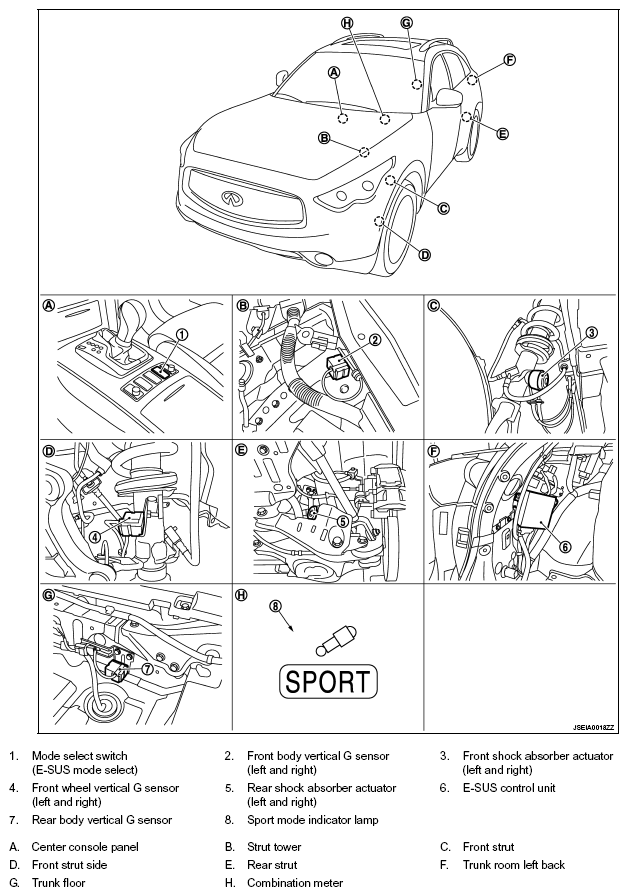

Fig 1: Identifying Continuous Damping Control System Component Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
