Without Continuous Damping Control

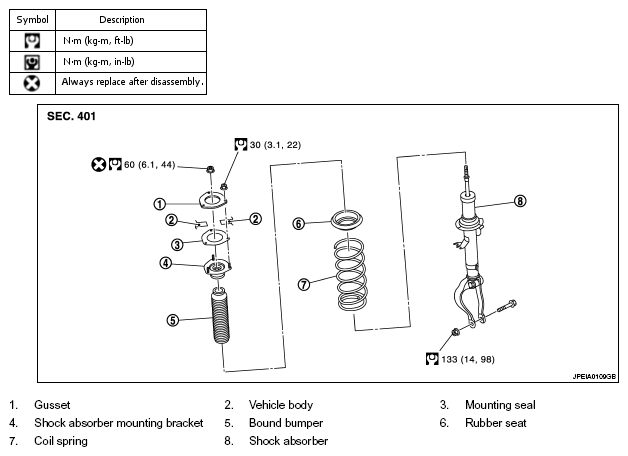

Fig 1: Exploded View Of Front Coil Spring And Shock Absorber - Without Continuous Damping Control With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
