Infiniti
›
2009
›
G37 Base, 2D Convertible
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Window System -- Convertible
›
Removal And Installation
›
Door Regulator
›
Exploded View
Exploded View

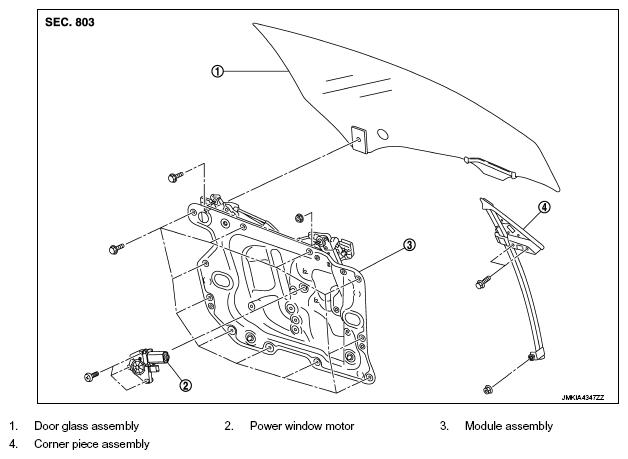

Fig 1: Exploded View Of Door Regulator
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
