VDC/TCS/Abs -- Convertible
›
System Description
›
Abs
›
System Diagram
System Diagram

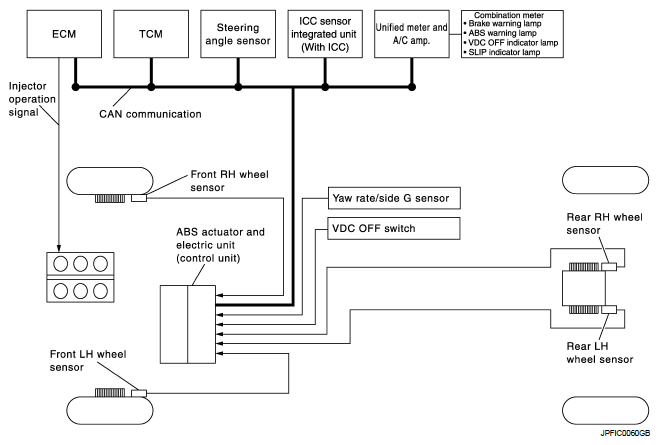

Fig 1: ABS System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
