FixVault
Home
›
Infiniti
›
2009
›
G37 Base, 2D Convertible
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Mechanical -- Convertible
›
Periodic Maintenance
›
Spark Plug
›
Exploded View
Exploded View

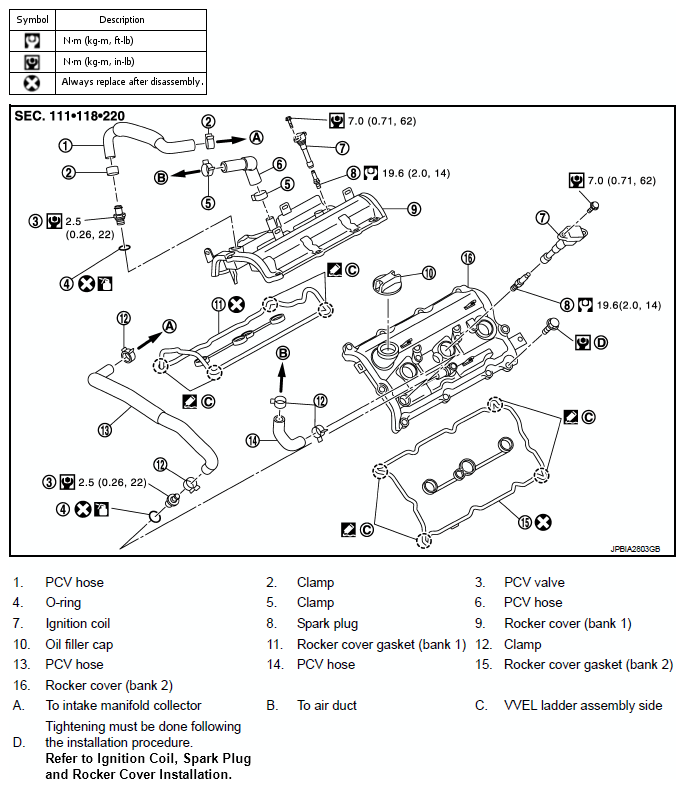

Fig 1: Exploded View Of Rocker Cover With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
