Infiniti
›
2009
›
G37 Base, 2D Convertible
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Mechanical -- Convertible
›
Unit Removal And Installation
›
Engine Assembly
›
Exploded View
Exploded View

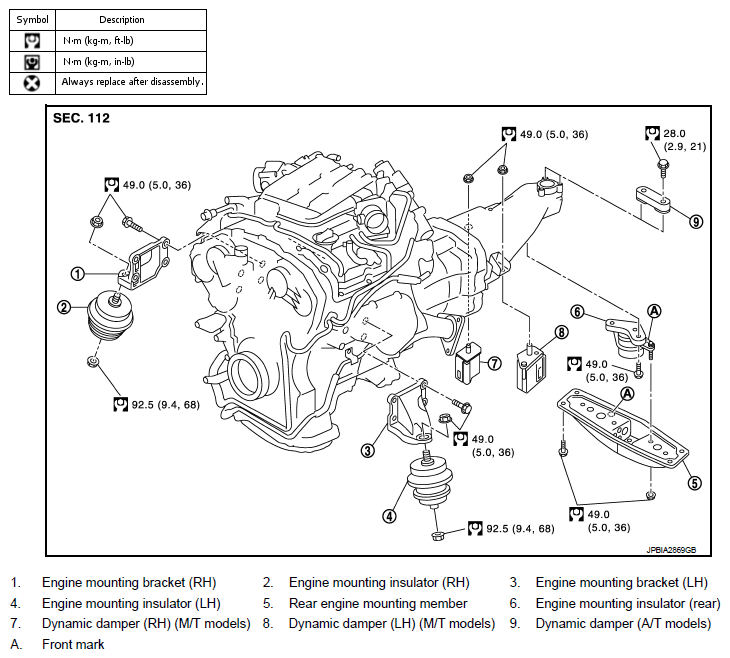

Fig 1: Exploded View Of Engine Mounts & Transmission Mounts With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
