Steering
›
Steering Control Systems
›
Steering Control System -- Convertible
›
System Description
›
EPS System
›
System Diagram
›
Cross-Sectional View
Cross-Sectional View

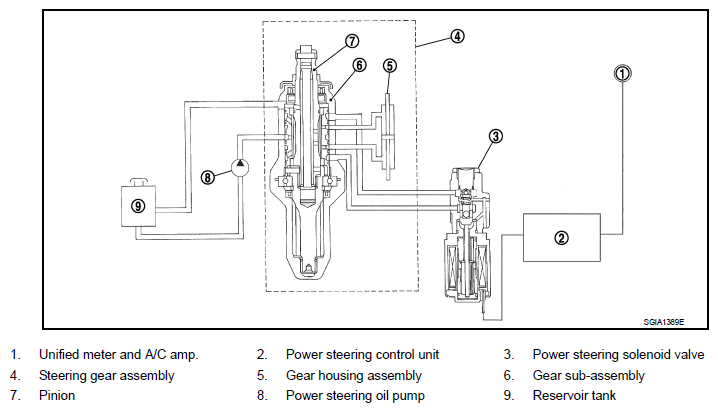

Fig 1: Cross-Sectional View Of EPS System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
