Front Suspension -- Convertible
›
Removal And Installation
›
Transverse Link
›
Exploded View
Exploded View

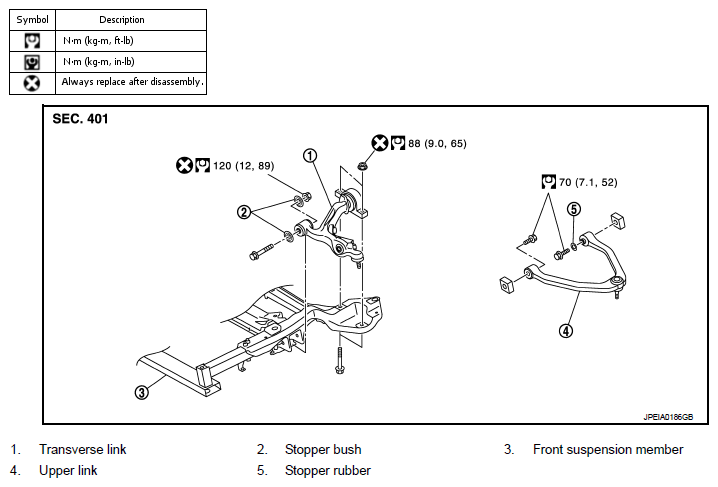

Fig 1: Transverse Link Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
