Front Suspension -- Convertible
›
Removal And Installation
›
Upper Link
›
Exploded View
Exploded View

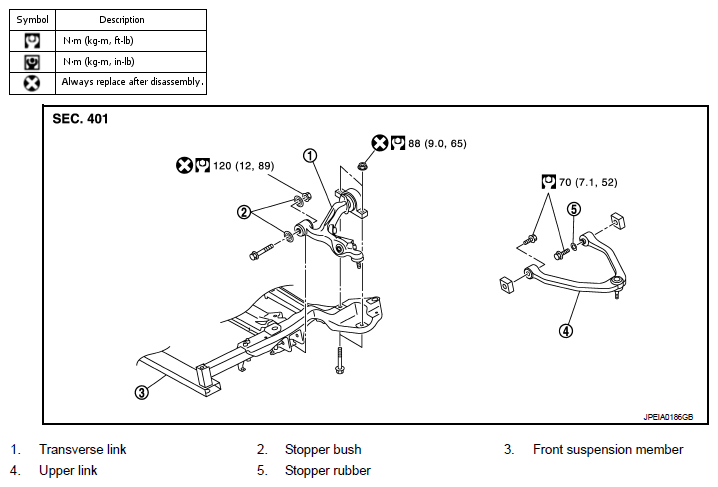

Fig 1: Upper Link Replacement Components With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
